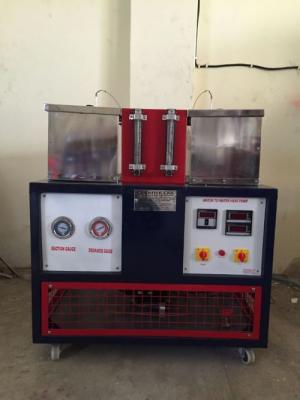

WATER TO WATER HEAT PUMP TEST RIG MAKE : CREATIVE LAB MODEL NO:07

DESCRIPTION:

Heat Pump and the refrigerating machine basically work on one and the same principle and with the same components. Heat pump is a machine, which delivers heat at a temperature suitable for domestic, Industrial and Commercial purposes. By added work input form the motor or engine it extracts heat from low-grade source. In many circumstances heat pumps can make valuable contribution to energy conservation. The majority of heat pumps operate on the vapour compression cycle using a refrigerant as the working fluid. Heat pump is fully sealed R-134A refrigerant system using water-to-water pumping principle. The equipment produces realistic results and has low thermal inertia so that unit stabilises very quickly and enables student’s maximum experimentation.

EXPERIMENTATION:

Determination of co-efficient of performance of the unit when working as water-to-water heat pump.

To Construction of Energy balances for completed system over a range of operating conditions.

To determine overall heat transfer co-efficient for condenser and evaporator.

UTILITY REQUIRED:

Electric supply 5A-220 V AC

Water supply and drainage

Floor area : 1.5 m x 1m

TECHNICAL DETAIL:

Compressor Hermitically sealed compressor. Capacity 1/3 Ton, Kirloskar make.

Condenser Water cooled type shell and coil condenser with refrigerant inside the tube.

Water flow measurement Provided with individual rotameters and four temperature sensor for both condenser and evaporator.

Expansion Valve Capillary Tube, Compatible Capacity.

Safety Control Overload and over current protectors for compressor and Time delay circuit.

Evaporator Water cooled Compatible capacity.

Temperature Sensor RTD PT-100 Type.

Control Panel comprises of

Digital Voltmeter 0-300 V

Digital Ammeter 0-5 Amp.

Temperature Measurement Digital Temperature Indicator with multi-channel switch.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

All the accessories will be mounted on a rigid base frame made of M.S. and it will be powder coated.

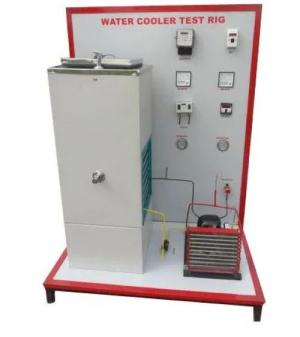

WATER COOLER TEST RIG MAKE : CREATIVE LAB MODEL NO:-CLRAC-11

DESCRIPTION:

‘THE WATER COOLER’ Test Rig enables students to study and understand Vapour Compression Cycle, its components, principle and working. All the components are mounted on rigid steel frame. The trainer consists of a hermetically sealed compressor, forced convection air-cooled condenser, filter / drier, flow meter, expansion device and coil wound type evaporator. Separate pressure gauges are provided to record suction and discharge pressures and digital temperature indicators for various temperatures.

EXPERIMENTATION:

To study the cooling capacity of water cooler.

To Study the Vapour Compression refrigerator cycle.

To Calculate Co-efficient of performance and draw P-H Diagram.

UTILITIES REQUIRED

Electric supply 5A-220 V AC

Water supply and drainage

Floor area : 1.5 m x 1m

TECHNICAL DETAILS

Compressor Hermitically sealed compressor.

Agitator Compatible capacity.

Condenser Forced convection air cooled.

Condenser cooling fan Axial flow type, Compatible capacity with permanent lubricated motor.

Evaporator Direct expansion type.

Expansion Device Capillary Tube, Compatible Capacity.

Pressure Gauges 2 Nos.

Accumulator Copper / M.S. shell suction line accumulator provided.

Insulation Polyurethane Foam (PUF)

Safety Control overload and over current protectors for compressor and Time delay circuit.

Temperature Sensor RTD PT-100 Type.

Control Panel comprises of

Digital Voltmeter 0-300 V

Digital Ammeter 0-5 Amp.

Temperature Measurement Digital Temperature Indicator with multi-channel switch.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

All Other accessories like Hand shut off valves, filter drier and Thermostat will be provided.

All the accessories will be mounted on a rigid base frame made of M.S. and it will be powder coated.

STEAM JET REFRIGERATION TEST RIG MAKE : CREATIVE LAB MODEL NO:CLRAC-12

DESCRIPTION

A steam jet refrigerator is a heat-operated refrigeration cycle. It is driven by low temperature thermal energy, 100-200 deg C, normally wasted from many industrial processes or cheap to produce. For the circulation of working fluid, it needs small amount of mechanical power. The pump work is negligible as compared to the thermal energy required.

ELECTROLUX REFRIGERATOR (VAPOUR ABSORPTION REFRIGERATION CYCLE TEST RIG) MAKE : CREATIVE LAB MODEL NO:CLRAC-14

DESCRIPTION:

The set up demonstrates the students about the basic principal of a vapour absorption refrigeration cycle. The test rig is designed for the study of thermodynamics of vapour absorption refrigeration cycle by measuring temperature at different position.

EXPERIMENTATION:

To Calculate Co-efficient of performance.

UTILITIES REQUIRED

Electric Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. combined socket with earth connection.

Floor Area : 1.5 m x 1m

TECHNICAL DETAILS

small scale demonstration of common industrial refrigeration and air conditioning processes.

The refrigeration process, carry out in-depth analysis of heat transfer process,Mode of System Externally heated by electric resistanceEvaporator Coil Type evaporator with facility to determine performance efficiency ratio (PER)

Control Panel comprises of

Digital Voltmeter 0-300 V

Digital Ammeter 0-5 Amp.

investigate the coefficient of performance and perform full energy balance across the system.Sealed Circuit The System has no moving parts at all, which makes it Silent and very durable.

Refrigerant Mixture of three fluid system Ammonia(NH3) + Water (H2O) + Hydrogen (H2)

Gases Non – CEC, Non – HCFC, Non – FCKW, Non – Freon

Mode of System Externally heated by electric resistance

Evaporator Coil Type evaporator with facility to determine performance efficiency ratio (PER)

Volume of Cabinet 41 Ltrs., Voltage Input – 65 Watt.

WINDOW AIR CONDITIONING TEST RIG MAKE : CREATIVE LAB MODEL NO:04

DESCRIPTION:

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.

EXPERIMENTATION:

To study the Vapour Compression air conditioning cycle.

To Calculate Co-efficient of performance- (COP) by the use of P-H diagram.

UTILITY REQUIRED:

Electric supply 5A-220 V AC

Floor area : 1.5 m x 1m

TECHNICAL DETAIL:

Compressor Hermitically sealed compressor.

Capacity 1 Ton, Kirloskar make.

Condenser Air cooled compatible to 1 Ton compressor

Condenser Cooling fan Compatible capacity with permanent lubricated motor.

Pressure Gauges : 2 Nos.

Evaporator Compatible to 1 Ton, made of copper tube and aluminum fins fitted with compatible capacity fan.

Safety Control over load and over current protection for Compressor with Time delay circuit.

Expansion Device Capillary Tube compatible capacity.

Temperature Sensor RTD PT-100 Type.

Temperature Measurement Digital Temperature Indicator with multi-channel switch.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus.

All Other accessories like Hand shut off valves, filter drier and Thermostat, Pressure gauges will be provided.

All the accessories will be mounted as rigid base frame made of M.S. and it will be powder coated.
