Digital penetrometer helps to determine the consistency of the sample bituminous under pre-specified conditions or factors of time, temperature, and load. The penetration results are expressed in the distance of 10th of millimeters that is vertically penetrated by the standard needle. We manufacture the best digital penetrometer in a rugged environment and come with base table clubbed with leveling screw.

Specification:

On the base, a vertical pillar mounted with leveling screws.

The head along with dial plunger rod a cone slides on the pillar and can be easily clamped to the desired height.

It also carries the digital timer for controlling the penetration duration.

For fine adjustment of needle or cone tip to sample comes with a rack and pinion and pointer assemble.

A clutch mechanism is incorporated which help to read the penetration and subsequently help in resetting a simple and accurate operation.

The dial is graduated in 400 1/10 and the millimeter subdivisions with the needle pointer against the actual figures for easy reading.

Comes with a bitumen penetration needle, two sample containers, and ring weight one every 50 gms. and 100 gms, lead screw gear arrangement, Spirit level, and a digital preset timer.

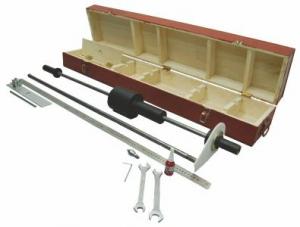

A simple and robust instrument for rapid in-situ measurement of the structural properties of road pavements

Provides fast and efficient method of obtaining information

For continuous measurements up to a depth of 800 mm and 1,200 mm with the extension rod.

Portable and can be accommodated in a carrying case



The unit is compact with in-built timer to control duration of penetration presetted in factory to 5 seconds. The instrument is provided with leveling screws
