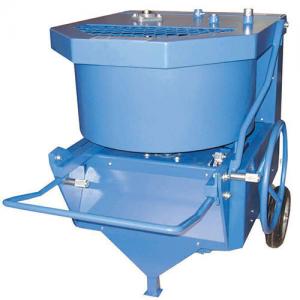

A concrete pan mixer is equipment that is used for combining cement homogenously, and aggregate such as gravel, sand, and water to make concrete. The mixer makes use of revolving drum for mixing the components. Thus, by using the equipment, thorough and uniform mixed batches can be formed in laboratory or field.

Specification:

The Laboratory Pan Mixer comes equipped with rubber tyre towing tongue that enables it to be moved and towed around by hand. The rotations of the equipment are powered by hand or through a three-phase electric motor joint with gear box to reduce the rotating speed at 20 to 25RPM . The lever enables the concrete to be placed into the mixing pan or the wheel-borrow. The driving shaft of the machine is placed on ball bearing which is sealed. The drum swivels are countered balanced and can be title to any angle for complete and quick discharge.

The equipment has been designed to minimize or eliminate the tedious task of hand mixing. Using the laboratory pan mixer, highly mixed batches can be developed. Moreover, the counter-balanced drum can be made to tilt easily by 1 to 2 cu. fl. mix.

Drum Capacity: 40 to 60 ltrs.

Overall Dimension: 910 x 875 x 1250 mm

Motor: 3 HP, 960 RPM

Power supply : 440 V, 50 Hz, 3 phase AC



The Autoclave is suitable for conducting accelerated soundness tests on cements of the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure.

Specification:

It consists of a stainless steel cylinder with a welded heat insulated voer, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished.

The attached control unit encloses a sensitive pressure regulator and pressure gauge, power switches and pilot lights for controlling the electric heating units.

Inside Chamber Dimensions-10.5 diameter x40.5cm height suitable for operation on 230V,50Hz, Single Phase, A.C. Supply.

Supplied complete with test bar holder, special rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner.

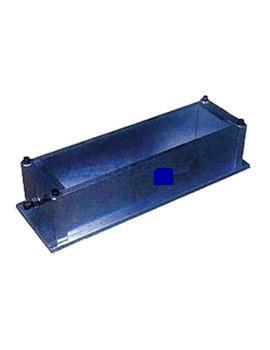

The mould is used for casting specimens of cement aggregate combinations fro measuring the potential expansive alkali reactivity.

Specification:

The mould, which has 25mm x 25mmx 250mm. effective gauge length is made of mild steel and has accurately machined faces.

The parts of the moulds are tight fitting and firmly held together when assembled. Supplied complete with base.

Available models:

A : Shrinkage Bar Moulds– Two gang Two compartment

B : Shrinkage Bar  Three gang Three compartment

C : Shrinkage Bar Moulds  Four gang Four compartment
