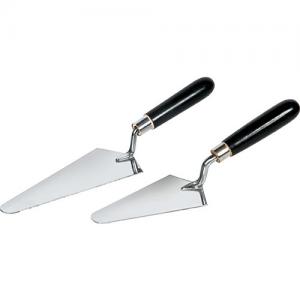

The gauging trowel is a versatile tool used for transferring plaster (the broad rounded point is ideal for picking plaster out of a bucket) and for applying plaster to a wall or surface.



Specification:

Weight approximately 210gm.

Best quality with hardwood handle

Blade length approx. 200mm.

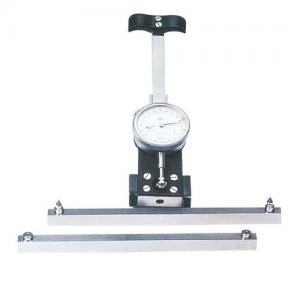

It is used for finding out the linear deformation caused on two reference points fixed on a loading member.

Specification:

This portable gauge is designed for a gauge length of 20c.m of the reference pins.

The deformation is indicated by a 0.002 x 10mm dial gauge attached to the instruments.

Complete with two standard bars for 20cm gauge length supplied in a wooden case.



Accessories:

Reference pins in packet of 100 Nos.



This is for determining the lateral extension of 15 cm dia. x 30cm high cement concrete cylinders while testing them under compression.



Specification:

The unit consists of two movable frames pivoted at one end.

The extensometer is fixed to the specimen with the help of tightening screws.

The lateral extension is indicated on a dial gauge of .002mm x 12mm travel.

The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact readings. A spacer strip is provided to initially set the dial gauge, and can be removed after initial setting.

Supplied in a wooden carrying case.
