Vibrating Table, 50 x 50cm for 4 moulds of 150mm cube having Proper compaction of cement concrete while casting specimens for compression testing is essential to achieve higher compressive strength. The table top is suitable to hold cube moulds and has stops along its edges to prevent moulds from sliding off the table during operation. The specially designed vibro motor for operating the vibratory. Suitable for operation on 220 V, 50 Hz, Single Phase, AC supply. Capacity 0.5 to 1 ton, the height of the table from the ground level shall be sufficient to allow for easy placing and removal of the moulds and shall not exceed

0.75 metre. frequency of vibration for the table operating at its maximum load capacity shall be between 3000 to 6000 cycles per minute. IS Code:2514-1963.

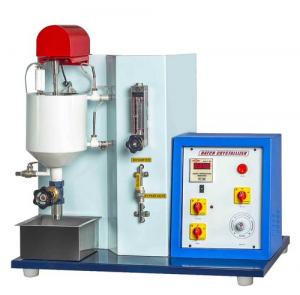

Crystallization is the formation of solid particles within a homogeneous phase of saturated liquid. Its wide use has a two-fold basis, a crystal formed from an impure solution is itself pure and crystallization affords a practical method of separating w. This operation involves both heat and mass transfer. Cooling type agitated batch crystallizer set up consists of an open jacketed stirred vessel provided with water heating & cooling arrangement. The feed is prepared in the crystallizer itself with hot water and stirrer. The hot saturated solution in the crystallizer is then cooled by circulation of cooling water and crystals are formed.
