Skid Resistance Tester

Used to measure antiskid performance of high grade roads.

Thermometer range –10 to +110 °C for surface temperature measurement.

Stool, wash bottle, bristle and tool set for machine use.

Carrying case.

The base has three adjustable feet so that the swing of the pendulum during the test moves through a truly circular path while operated directly on a road surface.

Additional incorporated scale for tests on Polished Stone Value specimens.

Rule, made of plexiglass, for sliding length verification

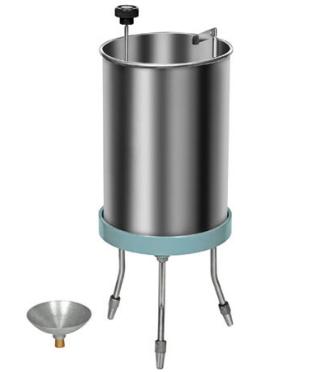

Specific Gravity and Water absorption

Density Basket, A wire basket of not more than 6-3 mm mesh or a perforated container of convenient size 20 cm dia x 20 cm high with wire hangers not thicker than one millimetre for suspending it from the balance.

Balance -A balance or scale of capacity not less than 3 kg

Suitable for operation on 220 V, 50 Hz, Single phase, AC supply.

A container for filling water and suspending the basket.

A shallow tray and two absorbent clothes, each not less than 75x45cm.

1. A thermostatically controlled oven to maintain temperature at 100-110° C.

LATH MACHINE MAKE : CREATIVE LAB MODEL NO;CLPL-01

TECHNICAL DETAIL
BED LENGTH FT: 1371 MM
WIDTH OF BED:304 MM
HEIGHT OF CENTRE: 250 MM
SPINDLE BORE: 52 MM
SWING IN GAP : 813 MM
SWING OVER BED: 508 MM
NO OF SPINDLE SP[EED : 6
ADMIT BETWEEN CENTRE : 762 MM
ELECTRIC MOTOR- 1 HP
FOUR JAW CHUCK - 300 MM

FLOAT TEST APPARATUS

DESCRIPTION

Used to determine the floating time of bituminous materials.

Consists of an aluminum oat and a brass collar filled with bitumen to be tested.

The specimen in the mould is cooled to a temperature of 5°C and screwed in to oat. The total test assembly is floated in the water bath at 50°C and the time required for water to pass its way through the specimen plug is noted in seconds and is expressed as the oat value.

ASTM D139, AASHTO T50

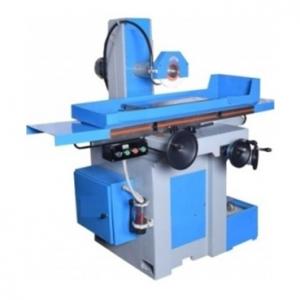

SURFACE GRINDERS HORIZONTAL WITH 2800 (RPM) GRINDING WHEELS MAKE : CREATIVE LAB MODEL NO:CLPL-15B

TECHNICAL DETAIL

Horizontal surface grinder for Technical Evaluation

Transverse moments of wheel head or table: Hydraulic

Grinding Wheel Speed in rpm: 2800

Capacity of Grinding Wheel Head Motor in kw: 0.74

Motor Capacity for Pump for Hydraulically operation in kw; 0.74

Speed of motor of pump for Hydraulically operation in rpm: 960

Capacity of coolant motor in hp: 0.15

Number of T slots on Table:1

Availability of heavily ribbed for better vibration damping and shock absorption Yes

Transverse moments of wheel head or table

Hydraulic

Range of Table Speed in m/min 15

Maximum Weight that can be handled by machine in kg50

Vertical feed Graduation in mm0.01

Cross feed Graduation in mm0.05

Material Removal rate in gm/ min0.1

Length of Guide way in mm300

Width of Guide way in mm100

Type of grinding wheel

SILICON

Width of Grinding Wheel in mm13

Diameter of Grinding Wheel (OD x ID)180

Grinding Wheel Speed in rpm2800

Capacity of Grinding Wheel Head Motor in kw0.74

Motor Capacity for Pump for Hydraulically operation in kw0.74

Speed of motor of pump for Hydraulically operation in rpm960

Capacity of coolant motor in hp0.15

Number of T slots on Table1

Width of T slots on Table in mm8

Spacing of T slots in table in mm10

Width of wheel head guide way in mm50

Noise level of machine at 1 meter distance in db85

Size of main spindle bearing of machine70

Instruction Manuals 3 setYes

Width of T slots on Table in mm: 8

Working Surface Area of the table or Table Clamping area (L x W ) in mm x mm: 200 x 450

Max Height from table to Grinding Wheel in mm: 200

Least count of hand wheel for in feed in mm: 0.01

Availability of Switch for operating electromagnetic chuck: Yes

Availability of Handle operated electromagnetic chuck: No

Precision Three Jaw Self Cantering Chucks to hold up to 50 mm jobs: Yes

Magnetic Chuck size 250 mm X 112 mm: No

Magnetic base Table, minimum 200 mm X 125 mm with magnetizing & demagnetizing: No

Internal attachment, suitable quills to grind up to 100 mm deep jobs: No

Grinding Wheel Balancing stand to balance minimum 300 mm Dia Wheel: No

Grinding Wheel dressing attachment: Yes

Diamond Tool holders for Wheel dressing: No

Dust Exhaust equipment suitable for grinding machine: No

Extra grinding wheels: No

Face plate along with dog carrier: No

Steady Rest: No

Radius grinding attachment: No

Flanges: No

Diamond Dresser: Yes

Precision Three Jaw Self Cantering Chucks size 100 mm: No

Precision Three Jaw Self Cantering Chucks size 150 mm: Yes

Precision Three Jaw Self Centering Chucks size 200 mm: No

Four Jaw Chuck size 150 mm: No

Four Jaw Chuck size 200 mm: No

Circular magnetic chuck: No

Hand operated chuck: No

Standard Parameter

Conformity to standards of Horizontal surface grinder for Technical Evaluation

As per IS 6893-1988 Part 1 with latest amendment

Conformity to standard of surface grinder material for Castings per IS 210

Conformity to standard of Lubrication system requirement As per IS :11118

Conformity to standard of Cooling system requirement As per IS :11118

Conformity to standard of Position accuracy for cumulative error As per IS:1878

Conformity to standard of Position accuracy for repeatability’s per IS:1878

Conformity to standard of Position accuracy for backlash As per IS:1878

Conformity to standard of Position accuracy for minimum possible requirement

As per IS:1878

Conformity to standard of Geometric accuracy for general surface grinder

As per Is 1878-1971 latest

Conformity to standard of Geometric accuracy for precision surface grinder

As per IS 6040-1972 latest

Conformity to Standards for grinding wheel for grinders

Dimensional And Material Parameter

Working Surface Area of the table or Table Clamping area (L x W ) in mm x mm

200 x 450

Max Height from table to Grinding Wheel in mm 200

Material of Bed

High Tensile Strength Cast Iron

Least count of hand wheel for in feed in mm0.01

Weight of Machine in kg1100

Overall Dimensions of the machine in mm x mm x mm (L x W x H ) 1050X1500X1700

IS 2743: 2008 latest
