Water bath Chamber Capacity: >over 18 to 22 litre

Chamber Construction: Double walled rectangular chamber with mineral wool/solid insulation material filling in between

Material of Outer Chamber Construction: Epoxy / Powder coated Stainless Steel SS304

Number of racks provided with Water bath unit: 0

Number of 75 mm diameter Holes provided: 12

Heating Capacity (>=):1500 Watt

Control Panel has: ON/Off Switch, Heating & Temperature (Set & Actual) Indicators, Power mains Indicator, Temperature controller

Adjustable shaking frequency in rpm: NA

Type of Temperature controller: Digital controller cum Indicator PID Based control

Water bath Display type: Digital (numerical/application specific) backlit LCD display

Integrated circulation pump for temperature homogeneity: No

Removable bottom plate and shaking inserts: No

Temperature range of bath chamber: 5°C above ambient to 99.9°C

Temperature control sensitivity: ±0.5°C or better

Least temperature increment Step available: 0.1 degree C

Temperature Accuracy: ±5°C or better

Safety Features: Low fluid Alarm, High limit Alarm, Over temperature Alarm & cutoff, Redundant safety thermostat

Power requirement: 220 V 50 Hz Single Phase AC

Availability of Test Report from Central Govt/NABL/ILAC accredited lab to prove conformity to specification: Yes

Equipment has CE certification: Yes

Warranty Period: 3 year

Timer Provided: Yes

Timer Setting (minimum increment step): 1 second

Drain plug in Chamber provided: No

Data Logging facility through (RS 232/USB/HDMI/Bluetooth etc) to computer available: No

Drain screw for emptying of water bath: No

Seamless and waterproof keypad: Yes

Water Bath Chamber Dimensions, Capacity And Construction

Chamber Length of offered product: 375 inch

Chamber Width of offered product: 300 millimeter

Chamber Depth of offered product: 175 millimeter

Water bath Chamber Capacity >over 18 to 22 litre

Chamber Construction: Double walled rectangular chamber with mineral wool/solid insulation material filling in between

Material of inner Chamber and lid Construction: Stainless Steel (SS 304)

Material of Outer Chamber Construction: Epoxy / Powder coated Stainless Steel SS304

Weight (kg) 11.4

Number of racks provided with Water bath unit 0

Number of 75 mm diameter Holes provided: 12

Heating Arrangement Parameters

Heat source: Heating shall be done by a immersion heater.

Heating Capacity (>=): 1500 Watt

Control Panel And Display Unit

Control Panel has: ON/Off Switch, Heating & Temprature (Set & Actual) Indicators, Power mains Indicator, Temperature controller

Adjustable shaking frequency in rpm NA

Type of Temperature controller Digital controller cum Indicator PID Based control

Water bath Display type: Digital (numerical/application specific) backlit LCD display

Integrated circulation pump for temperature homogeneity No

Removable bottom plate and shaking inserts No

Water Bath Temperature

Temperature range of bath chamber: 5°C above ambient to 99.9°C

Temperature control sensitivity: ±0.5°C or better

Least temperature increment Step available 0.1 degree C

Temperature Accuracy: ±5°C or better

Safety Features: Low fluid Alarm, High limit Alarm, Over temperature Alarm & cutoff, Redundant safety thermostat

Power Requirement, Certifications And Warranty

Power requirement: 220 V 50 Hz Single Phase AC

Availability of Test Report from Central Govt/NABL/ILAC accredited lab to prove conformity to specification Yes

Manufactured by ISO 9001:2008 or latest certified firm: YES

Equipment has CE certification Yes

Warranty Period: 3 year

Cover

Lid/cover Provided Yes

Shape of Cover Gable

Timer Unit

Timer Provided Yes

Timer Setting ( minimum increment step) 1 second

Miscellaneous Features

Drain plug in Chamber provided No

Data Logging facility through (RS 232/USB/HDMI/Bluetooth etc) to computer available: No

Steel holder for tubes and Flasks provided: Yes

Drain screw for emptying of water bath No

Seamless and waterproof keypad Yes



Purpose: Wood Cutting

Type of Saw: Circular Saw

Power Input in watt: 750

Cutting depth at 90 degree in mm: 85

Cutting depth at 45 degree in mm: 65

No load Speed in RPM: 850

Warranty in years: 1

Material of Circular saw: Tungsten Carbide

Diameter of Circular saw in inch: 7.50

Material of Base of cutter: Stainless Steel

Anti slip handle for Excellent Grip: Yes

Large front grip of Handle: Yes

Easy access adjustable for 55° bevel capacity for wider application; Yes

Plastic case of good quality for carrying wood cutter: Yes

Lock-on button for fatigue-free continuous running: Yes

Lock-off switch to prevent accidental action: Yes

High capacity gear set for less vibration, lower noise & longer life span: Yes

Replaceable Blade: Yes

Adjustable Height: Yes

Carbon brush access caps for easy access and quick change: Yes

Accessories : Wrench, Hex wrench, Vinyl tube, Tube holder: Yes

Sawdust ejection chute to direct sawdust away from operator: Yes

Availability of test report form ILAC/NABL/Govt laboratories to conformity of specification: Yes

Copy of test reports to be submitted to buyer on demand at the time of supplies: NA

Performance Parameters

Purpose Wood Cutting

Type of Saw Circular Saw

Input Power Supply Single Phase 230 V, 50 Hz

Power Input in watt 750

Cutting depth at 90 degree in mm 85

Cutting depth at 45 degree in mm 65

No load Speed in RPM 850

Warranty in years 1

Dimensional And Material Parameters

Material of Circular saw Tungsten Carbide

Diameter of Circular saw in inch 7.50

Thickness of wheel of circular saw in mm 7.7 millimeter

Overall Length of Cutter in inch 1440 inch

Material of Base of cutter Stainless Steel

Material of Gear Cover High Quality Plastic

Material for Blade Cover High Quality Plastic

Length of power cable in meters 7

weight of the wood cutter in kg 5.2 kilogram

Dimension of wood Cutter (Lx WxH) in mm x mm x mm 450*150*150

Additional Parameters

Anti slip handle for Excellent Grip Yes

Large front grip of Handle Yes

Easy access adjustable for 55° bevel capacity for wider application Yes

Plastic case of good quality for carrying wood cutter Yes

Lock-on button for fatigue-free continuous running Yes

Lock-off switch to prevent accidental action Yes

High capacity gear set for less vibration, lower noise & longer life span Yes

Replaceable Blade Yes

Adjustable Height Yes

Carbon brush access caps for easy access and quick change Yes

Accessories : Wrench, Hex wrench, Vinyl tube, Tube holder Yes

Safety Features of the Machine to be indicated yes

Sawdust ejection chute to direct sawdust away from operator Yes

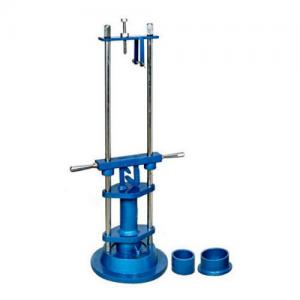

Aggregate impact tester helps to determine the aggregate impact value

Specification:

The instrument consists of a circular base with two vertical guides. The hammer of weight 13.75 + 0.25kg can be raised to fall freely down the vertical guides. The height of fall can be adjusted through 380+ 5mm.

 The hammer is provided with a locking arrangement. The hammer falls freely to the base and is removable for emptying. Supplied complete with metal measures 75mm dia. x 50mm high (for specimen preparation) and tamping rod 230mm long x 10mm dia.



It is ideal for the determination of resistance of aggregates to wear by abrasion. Our Deval Attrition Tester consists of two hollow cylinders closed at one end and provided with tight fitting covers at the either end.



Specification:

These cylinders are mounted on a shaft at an angle of 30 degree with the axis of rotation of the shaft

The shaft rotates at 30-33 rpm through a reduction gear operated by a motor and is provided with a revolution counter

Complete with abrasive change consisting of 12 Nos. hardened steel balls of 48 mm diameter

Suitable for operation on 440 volts, 3 phases, 50 cycles, A.C. supply

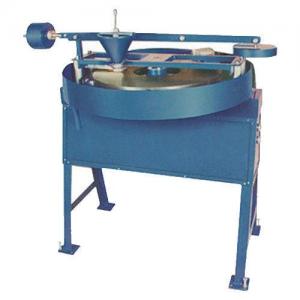

It is used for testing aggregates for resistance to abrasion.



Specification:

It consists of a disc rotating about a shaft connected to a reeducation gear box coupied to a motor. The disc rotates at 20-30 rpm. Under the rotating disc is a tray with an outlet to facilitate the removal of sand.



Two conical hoppers are mounted on a bracket fixed to the circular tray. An arrangement is made for start and stop the flow of sand. Two holes are provided for mounting two specimens simultaneously.

Two containers with weights are supplied to keep the specimens pressed against the rotating disc. Suitable for operation on 220Volts, 50 cycles, A.C. supply.
