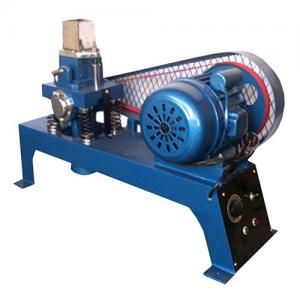

Concrete moulds are easily cast by using a tamping bar or a vibrating table. However air trapped in cement mortal paste cannot be thus removed while casting cement mortal moulds. Easy method is to impart greater vibration of lesser amplitude to the mould while casting.



This is achieved in a vibrating machine. Vibration of lesser amplitude to the mould while casting. This is achieved in a Vibrating Machine.



Vibrating Machine is used for the preparation of mortar cubes for the determination of compression strength of ordinary and rapid hardening Portland cement, Low heat Portland cement, Portland blast furnace cement and high alumina cements.



Specification:

The machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base. The complete frame assembly consists of a vice to hold a 7.06cm cube mould and two studs threaded at top and a hopper to feed the sample in the mould.



This assembly is supported on four springs and has an in built rotating shaft which rotates eccentrically and thus imparts vibrations to the entire frame. A balance weight is an integral bottom part of the frame.



The center of gravity of the assembly is brought to the center of the eccentric shaft or within a distance of 25mm below it. The electric motor drives the shaft of the frame and thus imparts required vibrations to the mould. The frequency of vibration is 12000+/-400 vibration per minute.



Supplied complete with on 7.06cm cube mould with loose base plate a time switch 0- 5minsx1min and certificate of vibration from a standard Laboratory.



For applying loads for various tests in the field of Laboratory.



Specification:

Hydraulic jack hand operated with separate pumping units. These jacks are portable and available in various capacities.



The pumping unit is connected to the hydraulic jack by means of a flexible connecting pipe 2 meter long. The jack is fitted with lifting handles for easy transportation. The approximate lift of the ram is 90 to 120mm. the pumping unit is a single plunger type with detachable handle.



The unit is fixed on a channeled base which is fitted with lifting handles. A pressure release valve is provided on the pumping unit. The load is indicated on 15cm dial hydraulic pressure gauge of appropriate capacity which can be detached from the pump when not in use.



The least count of the calibrated dial will be according to the capacity of the gauge (Normally 100 divisions for full capacity)



For applying loads for various tests in the field of Laboratory.



Specification:

Hydraulic jack hand operated with separate pumping units. These jacks are portable and available in various capacities.



The pumping unit is connected to the hydraulic jack by means of a flexible connecting pipe 2 meter long. The jack is fitted with lifting handles for easy transportation. The approximate lift of the ram is 90 to 120mm. the pumping unit is a single plunger type with detachable handle.



The unit is fixed on a channeled base which is fitted with lifting handles. A pressure release valve is provided on the pumping unit. The load is indicated on 15cm dial hydraulic pressure gauge of appropriate capacity which can be detached from the pump when not in use.



The least count of the calibrated dial will be according to the capacity of the gauge (Normally 100 divisions for full capacity)



Hot air ovens are used in laboratories to perform effect of ageing on various physical properties of any type of materials including yarns, fabrics and paper etc; in addition, these ovens are also used for high quality drying and baking applications in the field of laboratory, medical or biomedical and pharmaceutical and textile industries, where fast heat up and consistent temperature are prime requisite. Often known as hot air circulating ovens, these units are fitted with blower or fan inside in order to distribute hot air (warm air) in every corner of the inner chamber.

The apparatus is designed to provide confining pressure upto 160 Bar to triaxial cells. The system consists of an oil pump, continuously driven by an electric motor during the entire period of operation to maintain the desired pressure. The unit provides continuous variable pressure upto 160 Bar, which can be increased or decreased, simply by turning a control knob.

Specification:

Precise hot Air Drying and Sterilization.

The surface of the instruments from being Insulation keeps Burnt Better Mineral/Glass wool/Blanket Air Circulation of unique Design provide Silent Hot Air Blower throughout uniform air movement and improved Temperature distribution.

Ventilation keep the surface of the instrument Unique design of being burnt even when the instrument i.e.

200°C Oven Temperature maintained

Steeliness Steel interior used 304 grade polish corrosion resistant long life operation having adjustable shelves to make more space for different height.

Digital Temperature Controller Cum Indicator and Microprocessor Based Best quality PID Temperature Bi-Metallic Hydraulic capillary Thermostat, full features with Controller Cum Indicator having alarm facility.

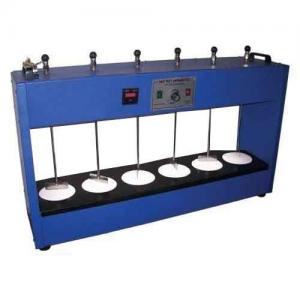

In water treatment plant these apparatus are used to perform floc formation test and should have the ability to test 4 samples simultaneously. The Jar Testing Apparatus is to be attached with digital RPM meter, digital counter and control switch.



The jar testing apparatus should ensure

Uniform stirring of up to 4 samples simultaneously.

Digital display which clearly indicates the speed of rotational variable speed 10-200RPM.

Heavy duty 1 20HP motor with gear train mounted on a mild steel housing.

Stainless steel stirring paddlers with adjustable height.

Locking collars or stirring rods permit adjustment height of paddle height.

Spacing of 6 (150mm) between stirring rods so as to permit use up to 1000ml beaker.

The digital timer can be set to count down from 1 to 99 minutes.

Housing Material: CRC MS sheet duly powder coated.

Power Consumption : 220 230V AC supply 50HZ single phase

Motor  1 20HP Motor good quality

Illumination : Built in illuminator

Beaker  4 nos 1000 ml beaker

Anti-glare curtain and dust cover
