| BELT GRINDER |
MAKE : CREATIVE LAB
MODEL NO:CLMM-15
BELT GRINDER - LINISHER
Designed for initial rough grinding. Also the grinder provided has rigid construction and completely enclosed body which help in easy operations. These also have full cover mask in their base and dynamically well balanced rollers.
Specifications :
Working on 220V in single phase operation.
Manual belt -100/915 mm
Endless belt pulleys
Balanced pulleys
Polishing Motor Power ½ H.P Single/Single Phase
Application areas :
Metallurgical Laboratory
Forging Industry
Fasteners Industry
Casting Industry
Iron & Steel Industry
Auto Parts Ancillaries
|
|
|
|
| DOUBLE DISC POLISHING MACHINE MAKE :CREATIVE LAB MODEL NO:CLMM-04 |
METALLURGICAL POLISHING MACHINE
This is a simple and convenient machine for rough and fine polishing of metallurgical specimen. This specimen after mounting and after being polished by hand on emery paper is polished on this machine. The specimen is held against a rotating flat disc, on which a polishing cloth, impregnated with suitable polishing media such as silicon carbide powder , alumina or diamond powder, is stretched. Disc polishing gives the specimen a scratch free mirror like finish.
Accessories :
1. Etching compounds for all metals
2. Diamond Paste
3. Emery Papers
4. Polishing Media
5. Velvet Cloth
|
|
|
|

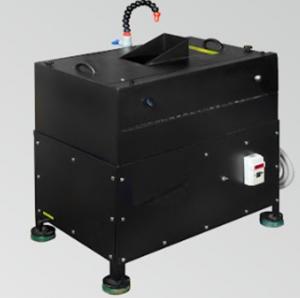

| SPECIMEN CUTTER MACHINE MAKE : CREATIVE LAB MODEL NO:CLMM-16 |
ABRASIVE CUT OFF MACHINE
An abrasive cut-off machine with complete operation for precision cutting of copper, brass, steel, alloy steel or non-metallic materials in cross sections range. A thin abrasive wheel can be used and highly accurate cutting length can be achieved.
Specifications of our abrasive cut off machine are as follows:
Sturdy floor model cutter for sectioning Metallography Samples
Rust proof construction
Steel vise
Cut-off wheel
Coolant Tank
Coolant Recirculation
Recirculation Pumps
|
|
|
|

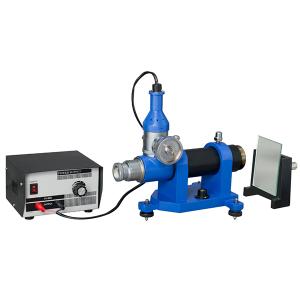

| AUTOCOLLIMATOR |
MAKE : CREATIVE LAB
MODEL NO:CLMM-02
TECHNICAL DETAIL
AUTOCOLLIMATOR is a sensitive, extremely accurate optical instrument which is precisely used in optical workshops, inspection departments and quality control labs. It is basically a comparator where we compare optical element like slabs and prisms for atness. It is used for very small angle measurements of the order of minutes.
The Autocollimator combines both optical tools, the collimator and the telescope into one instrument using a single objective lens. Both beam paths are separated by using a beam splitter. The autocollimator is a very sensitive angle measuring device and is thus used for the precise angular adjustment of optical or machine components.
|
|
|
|
| SPECIMEN MOUNTING PRESS MAKE : CREATIVE LAB MODEL NO:CLMM-04 |
Specimen Mounting Press
This machine is used for mounting the specimen in a Bakelite Powder and also to handle properly the specimen during polishing. The unit is of a rugged construction and is activated by a Hydraulic press, with a pressure gauge to read the pressure being applied while mounting. The press is to be supplied complete with mould heater and thermostat with 25 mm dia mould assembly. |
|
|
|
