The atomizer sprays the water will be cooled over the wet deck surface. The water trickles from the top to the bottom along the wet deck surface whilst air flows from the bottom to the top. The heat is transferred directly from the water to the air by convection and evaporation. The evaporated water volume is recorded. The airflow is generated by a fan and adjusted using a throttle valve.



The unit enables the students to study the Basic Principals of ice plant cycle within a short period. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. Ice cans are kept in liquid tank, which is cooled by the refrigerant evaporator. As conventional ice plants take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate process of ice formation to be complete within period of 4 hours and hence it is most suitable for laboratory use.

The present set-up has a facility to interface the system with computer which  enables  to  log  the  experimental  data  using  computer.  The educational software and data-logging package has been developed for unit. The software environment



base is of Labview of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by CL. Engineers. This software package provides a comprehensive educational software environment within which the investigations can be

performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

MEASURING RANGES

Differential pressure: 0-1000Pa (air) Flow rate: 12-360L/h (water) Temperature: 2x 0-50°C, 3x 0-100°C Rel. humidity: 10-100%

REQUIRED FOR OPERATION

230V, 50Hz, 1 phase

TECHNICAL SPECIFICATION

Total Equipment is skid mounted in SS 40 x40 Frame Structure with Castor wheels. All wetted parts also made of SS-304

Compressor-Hermitically sealed compressor, Kirloskar make.

Tank: The inner tank shall be fabricated out of stainless steel

Condenser: Air-cooled compatible to compressor Condenser Cooling Fan: Compatible capacity with permanent lubricated motor.

Pressure Measurement: Pressure Transmitter- 2 Nos.

Temperature Measurement: Temperature Transmitter- 6 Nos.

Evaporator: Made of Stainless Steel, Insulated with ceramic wool/puff. Expansion Device: Capillary Tube Compatible capacity.



The software environment base is of Labview of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by CL. Engineers. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

MEASURING RANGES

Current: 0-2,5A, V

voltage: 0-230VAC

Temperature: 10x -20-200°C

Pressure: 2x 0-10bar / 2x -1-1,5bar

Flow rate (cooling water): 6-75g/s

REQUIRED FOR OPERATION

230V, 50Hz, 1 phase 230V, 60Hz, 1 phase

TECHNICAL SPECIFICATION

Total Equipment is skid mounted in SS 40 x40 Frame Structure with Castor wheels.

All wetted parts also made of SS-304

Vapour jet compressor dmin convergent-divergent nozzle: approx. 1,7mm

d min mixing jet: approx. 7mm

Condenser Tank: approx. 3,5L

Pipe coil area: approx. 0,17m2

Evaporator Tank: approx. 3,5L

Heater power: 4x 125W

Vapour generator Refrigerant tank: approx. 0,75L

Water jacket: approx. 9L

Heater power: 2kW

Pump Max. Flow rate: approx. 1,7L/min

Max. Head: approx. 70mWS

Touch screen based Fully automatic system with password protection Data acquisition Remotely operated by Smart phone, Tablets, PC, laptops via Ethernet and Wi-fi & equipped with all safety protections Flow visualization Would be available in the DAQ System Would be equipped with both manual and auto operation

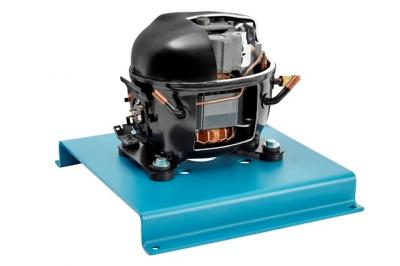

The model will be suitably sectioned to demonstrate the internal construction details showing the

minute information, and working of the same, the model will be suitably painted and mounted on a

metal or Mild Steel Sheet base & supplied with key card & very interesting literature regarding

working of the same.

FEATURES:

This model will be made out of original parts.

The model will be suitably painted and mounted on a metal or wooden base

Would contain clear part labels with printed schematic diagram of model 2 Nos. of 6” Steel Grip handles for easy moment of Model Powder coated base plate for Model Mounting Kit of a piston compressor consisting of piston and cylinder, housing, driving gear, cylinder cover with valves



This model will be made out of original parts. The model will be suitably sectioned to demonstrate the internal construction details showing the minute information, and working of the same, the model will be suitably painted and mounted on a metal or Mild Steel Sheet base & supplied with key card & very interesting literature regarding working of the same.

Would contain clear part labels with printed schematic diagram of model 2 Nos. of 6” Steel Grip handles for easy moment of Model Powder coated base plate for Model Mounting .

It consists of a stationary cylinder, a roller and a shaft.

The shaft has an eccentric on which the roller is mounted.

A blade is set into the slot of a cylinder in such a manner that it always maintains contacts with a sloter by means of a spring.

The blade moves in and out of the slot to follow the rotor when it rotates.

Since the blade separates the suction and discharge parts, therefore it is often called a sealing blade. When the shaft rotates, the roller also rotates the roller rotates so that it always touches the cylinder wall
