TECHNICAL SPECIFICATION

MORTAR MIXER-5 LITERS- It is used for mixing cement pastes, mortars and pozzolanas. The mixer consists of an epicycles type stainless steel paddle imparting both planetary and revolving motion. Mixer have two speeds. Mixer blade has low speed of 140 + 5 rpm and medium speed of 285 + 10 rpm, while it also has a planetary movement of 62 + 5 rpm in low range and planetary movement of 125 + 10 rpm in medium range. Stainless steel bowl fitted with handle, fitted with lid made of non-absorbing material and not attacked by cement, masonry cement, cement pozzolana mixture or lime pozzolana mixture. The scraper consists of semi rigid rubber blade attached to a handle about 150 mm long. The blade about 75 mm long, 50 mm wide and tapered to a thin edge. Suitable for operation on 230 Volts, single phase.

Instruction manual will be provided along with the apparatus.

TECHNICAL SPECIFICATION

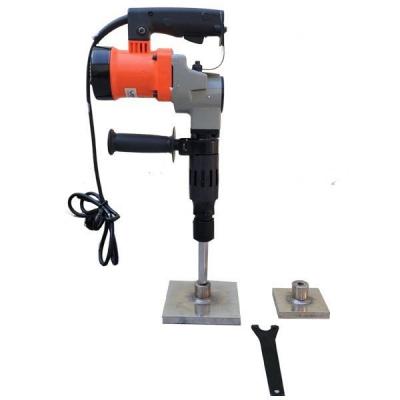

VIBRATING HAMMER - PORTABLE Used for the compaction of concrete specimens. Using the appropriate tamping foot, it can also be used for compacting concrete cube.

Power Consumption-230 V AC Weight-6 KG

Model-ZI2048 Warranty-1 year

Operating Voltage-230 V AC

Tool Chuck Type-BEARING TYPE Item Weight (Kgs)- 6 kg Dimensions-290 x 255 x 350 mm

Instruction manual will be provided along with the apparatus.

TECHNICAL SPECIFICATION

U BOX is one of the apparatus of the SCC (Self Consolidating Concrete) test accessories. These tests are used to determine the flow ability and passing ability of Self Consolidating Concrete (SCC) as defined in ASTM C1621.

Passing ability refers to the ability of SCC, under its own weight (without vibration), to flow into and completely fill the spaces within an intricate framework, containing obstacles such as reinforcement bars.

with Accessories

SCOOP FOR SOILCONCRETE-G.I.-4X8 INCH-1 KG APPROX

STOP WATCH - DIGITAL

MASONARY TROWEL MEDIUM – 6 nos

FOOT RULE MEASURING SCALE STEEL-600 MM-24 INCHES

Instruction manual will be provided along with the apparatus.

SPECIFICATION

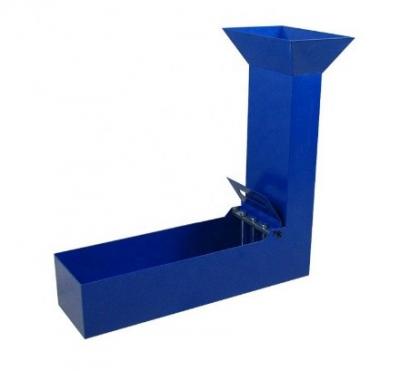

"L BOX APPARATUS-FOR SCC TEST

Made of Mild steel - powder coated or spray painted"

Instruction manual will be provided along with the apparatus

"FILL BOX APPARATUS

Made of Mild steel - powder coated or spray painted"
