Natural white, Black

Dimensions         2440x1080x780 mm Capacity2050 ltr

"ACCELERATED CURING TANK-INNER S.S.-FOR 48 CUBES OF

Accelerated Curing Tank having capacity to accommodate 24 concrete cube moulds of 15 cm, with a facility for accelerated curing by boiling water method up to temperature range: 140 ± 2 °C 280 ± 2 °C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 ± 2 °C. Item Included CALIBRATION OF ACCELERATED CURING TANK – NABL

CEMENT AUTOCLAVE (SIZE- 150 X 450 MM) The Autoclave is suitable for conducting accelerated soundness test on cements by the autoclave expansion test requiring constant steam pressure with the correspondent constant temperature. As per IS 4031:1988 (P-3). Supplied complete with Test bar holder. Supplied without Length Comparator and shrinkage bar Moulds which are available at extra cost.

Further details in Technical Section with Accessories (Cost included)

Shrinkage bar mould - 25 x 25 x 282 mm single compartment

Shrinkage bar mould - 25 x 25 x 282 mm two mould

Shrinkage bar mould - 25 x 25 x 282 mm - three mould compartment 4. Shrinkage bar mould - 25 x 25 x 282 mm - four mould compartment 5. Length comparator-dial gauge-is 9459, is 4031,

6. Length comparator - digital dial gauge - is 4139

Instruction manual will be provided along with the apparatus

SPECIFICATION

WITH NABL

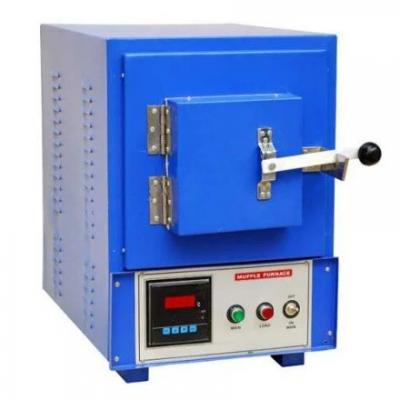

Technical Specification:

Maximum Temperature: 1200°C

Working Temperature: 1150°C

Temperature Accuracy: ± 5 °C

Temperature Resolution: 1 °C

Inner working size: 12' x 6' x 6' (300 mm D x 150 mm W x 150 mm H)

•Chamber volume: 7 Liter

Temperature sensor: K - type sensor

•Rating: 5.0 KW

Temperature Control: Dual display microprocessor based Digital temperature indicator cum controller

•Construction: Exterior body made of Mild Steel Material, which is powder coated in attractive shades

Insulation: Ceramic fiber wool insulation

Heating: A 1 wire in coil form placed in the Elements ribs & easily replaceable

•Circuit Wiring: As per CE Norms

Operation on: 220/230 Volts, Single phase, AC Supply

Overall Dimensions: 510 X 805 X 740(L X W X H) mm

Weight (Approx.) : 86 KG

Instruction manual will be provided along with the apparatus
