Horse power of motor provided: 0.5

Type: Double disc

Number of AC motors: 2

Grinding and polishing Disc diameter: 200 millimeter

Width of machine: 660mm

Height of machine: 310mm

Length of machine: 710mm

Body material: Mild Steel

Digital RPM Display: Yes

Speed variable adjustment knob: Yes

Maximum Variable speed (RPM): 1000

Input power: 350 Watt

Power supply: 230 Volt

Minimum Variable speed (RPM): 55

TECHNICAL SPECIFICATION

Detector Type: Standard detectors

Measurement range (X-axis): 17.5 millimeter

Measurement range (Z-axis Detector in micrometer): 360 micrometer (-200 micrometer to +160

micrometer)

Measuring Speed (Measuring in mm/s): 0.25, 0.5,0.75

Measuring Speed (Returning in mm/s): 1

Display: LCD (Digital)

Power Source: Rechargeable Battery

Battery Type: Inbuilt rechargeable battery

Battery Chemistry, if Rechargeable Battery: Li-Ion

Battery Capacity (mAh): 5000

Charging time(Hour): 3

Number of Batteries required for operation: 1

Number of Batteries supplied: 1

suitable AC adaptor/charger provided: Yes Manual will be provided.

TECHNICAL SPECIFICATION

No. of channel: 2

Interface: Ethernet

Measured current/Potential resolution: 0.0015% of current range

Applied potential resolution: 5 microvolt or lesser (0.005%)

IMP Amplitude range: 0.00001 V- 0.7 V RMS

Electrode Configuration, Terminals: 4

Potentiostat rise time: Greater then 300 nS or better

Reference electrode input impedance: 1000GOhm

Current range: 10pA - 250 mA or better

Compliance voltage: +/- 12 V or better

Scan Rate: 10 microV/s to 10000 V/s or better-0.1 mV/s

Potentiostat bandwidth: 10Mhz or better

Reference electrode input bias current: Less then or equal to10 pA

Applied current resolution: 0.03% of current range

Maximum current: +/- 250

Bandwidth of electrometer: 10MHz or better

IMP frequency range: 10uHZ to 1MHz

Maximum potential: +/- 10 V or better

Feature: Licensed and full version of software

Min System configuration: I5 (As per requirement)

Electrochemical Cell System & Accessories: 4 Glass cell (20ml)

Warranty Summary: 1 year

Latest processing unit/operating system included with workstation

Upgradable option: There will be a provision that in future the system will use in Spectroelectrochemistry Setup. System will be upgradable to Bipotentiostat

Techniques: Cyclic Voltammetry, Linear Sweep Voltammetry, Chrono Amperometry,Chrono

Coulometry,Bulk Electrolysis with Coulometry,AC Impedance, Impedance - Time, Impedance -

Potential, Open Circuit Potential - Time,IR Compensation, Bode and Nyquist & Mott-Schottky plot

can be done

Required: Tafel curve measurement and analysis, Corrosion rate measurement

Manual will be provided.

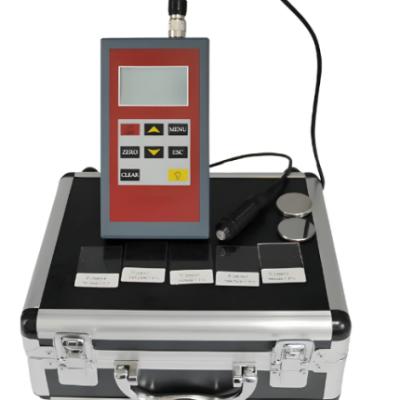

TECHNICAL SPECIFICATION

Area of measurement (min) (micrometer): 10 X 10

Base Material Identification: Automatic

Zero Setting: Yes

Display Type: Black & White display

Measurement Surface: Both

Statistics: Single and block value

Features: Accurate Results, Durable, Easy to use, Non Toxic

Data Memory: Up to 1,00,000 readings

Applications: To measure the thickness of coating done on the surface

Limit value warnings: Optical signal if limit exceeded, Acoustic signal if limit exceeded, Optical

and acoustic signal if limit value is exceeded

Gauge Type: Fixed Probe type

Set offset value: Yes

Usage: Industrial, Commercial

Calibration: Yes

Data Output: USB

Measuring principle: Eddy Current & Magnetic Induction method

Resolution: 0.1 micrometer

Measuring Range: 0-1.5 micrometer or better

Accuracy: 0.7 micrometer

Manual will be provided.

TECHNICAL SPECIFICATION

Battery Type: Lithium-Ion Battery

Bandwidth (MHz): 25

Operating temperature: 60 degree Celsius

Gain (dB): 110

Max. A-scan length samples: 10000

Data recording: Full data recording

Display: LCD-TFT

Damping (ohm): 500

Operating modes Pulse-echo,Transmit-receive suitable for contact and immersion test system

Battery charger: Yes

Battery Life, hours: 8

Test Range: 5000

Transducer socket: Lemo

Max. input voltage (Vp-p): 500

Rectification: Full-wave, Positive half-wave, Negative half wave, RF mode

Pulser type: Square wave pulse

Battery included: Yes

Power supply: 240 Volt

PRF: Adjustable 10Hz to 1000Hz

Units of measurement: Metric, British

Reject (FSH) linear reject: 99 percent

Mode: Dual,Angle,Thru

Pulse voltage: 500 Volt

Weight without Battery (Kg): 1.47 Kg

Weight with Battery (Kg): 1.87

Data storage devices: Internal SD

Pulse repetition freq.range: 1000 Hertz

Output: USB

Dialog language: English

Amplifier accuracy (dB): +/- 0.1

Velocity (m/sec): 20000

Manual will be provided.
