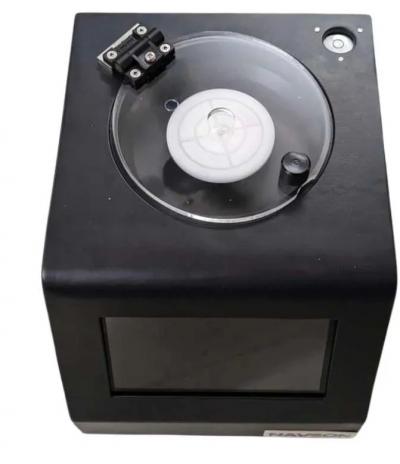

| TECHNICAL SPECIFICATION
Speed: 100 – 12000 RPM
Acceleration: upto 8000 RPM/s
1000 seconds per step
LIVE RPM vs TIME graph during the spinning time
Easy export of program data to external storage (USB)
Integrated Syringe Pump and Vacuum Control in the UI – Optional feature for
syringe pump accessory
Corrosion free Powder Coated Sheet Metal – Housing Material – Glove Boc
Compatible
10 steps per program (can be upgraded anytime through Over the Air software updates)
Upto 16GB of storage (storage of indefinite no of program)
Hybrid Vacuum and Vacuum less substrate holding mechanism
Substrate upto 4 inch – holder/chuck material – POM (Delrin White)
Working chamber – POM (Delrin) – 6 inch
Vacuum Suction upto 650mmhg for substrate holding through oil free vacuum pump
Optional upgrade Accessory- Compressed air actuated substrate holding
mechanism to eradicate vacuum pump – Vacuum Venturi
Safety Feature - Lid Interlock safety for open cover and vacuum failure
Centre Hole in the Lid for liquid dispensing
Transparent Acrylic Top lid
Pneumatic connection in the lid for Nitrogen Purging
Vacuum Connections – 10mm PU hose – 2m length - default
Drain Port in the chamber and in the enclosure body for cleaning out the excess fluids
Power Requirement – 220V AC/50Hz
Manual will be provided for both spin coater and other accessories if any, along with
complete spare part list
Warranty:3 years with support, additional years with AMC if needed.
Accessories Included
• Chucks to hold substrate from 10mmx10mm to 4 inch – 1 set
• Vacuum Less Universal chuck – 1 no
• Rocker 300 – Taiwan Make Vacuum pump – 1 no
• Micro syringe Pipette – 1 Manual will be provided. |
