CNC Fiber Laser Cutting Machine

Processing area: 3000mm*1500mm

Fiber power: Max Photonics 1000W

Cooling mode: Water cooling and protection system

Resetting positioning accuracy: ±0.01mm

Max acceleration: 1.2G

Compatible Software: CorelDraw/AutoCAD/Photoshop/AI…

Max traveling speed: 110m/min

Support graphic format: .LXD/.DXF/.PLT/.AI/.Gerber/.DWG…

Gross power: 12KW

Transmit system: Dual Rack & Pinion type

Operating temperature: 0-45?

Operating humidity: 5-95%

Maximum Cutting Thickness: MS- 8 to 10 mm, SS- 3 to 4 mm

Latest Industrial processing unit

Effective working Size: X Axis 1300, Y Axis 2500 mm

Laser Type: Fibre Laser

Wavelength: 1064 nm

Software: CNC programming with options of importing from Autocad/CATIA etc.

Water Chiller: HAnli

CNC Controller: CypCut

Laser Head Height Controller: BCS 100

Auto Focus Laser Head: Raytools (Switzerland)

Transmission System: Rack & Pinion

Drive system: Dual Drive

Lubrication System: Automatic Centralize Lubrication

Weight of Machine: 2.5 ton (Approx)

Bellow Cover: Stainless Steel Bellow

Rack and pinion Drive: Helical type

Nesting Software: CypCut

Transformer: Included

Laser Source: 1000 W (Raycus)

Computer: Industrial

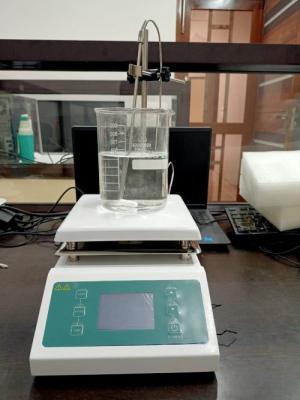

MAGNETIC STIRRER WITH HOT PLATE

MAGNETIC STIRRER WITH HOT PLATE
MAKE :CREATIVE LAB
MODEL NO:CLMEL-10

DESCRIOPTION
The primary use of magnetic stirrer or hot plate with magnetic stirrer is to conduct biological and chemical experiments by mixing two components. It is equally suitable for solids or liquid samples to obtain a consistent liquid mixture. Examples include media for bacterial growth and chemical synthesis.With a durable and chemically resistant ceramic surface, digital hotplate stirrer is the ideal solution for demanding users in all laboratory environments. The minimal footprint (18 x 26 cm) allows for use in crowded spaces such as fume hoods while the 16.5 cm square plate makes these units compatible with a wide range of commonly used vessels such as beakers, bottle and conical flasks.
TECHNICAL SPECIFICATION
Magnetic Stirrer with hot plate Specifications:
1. Electronically controlled.
2. 01 Number of stirring Positions.
3. Digital Display Option/Output Read out Option.
4. Magnetic stirrer is with a hot plate or some other means for heating the liquid.
5. Heating temperature range will be of 50-500º C.
6. Minimum Speed Possible (RPM) 100
7. Magnetic stirrer Type (variable speed).
8. Top plate Material Ceramic.
9. Base material will be of die cast aluminum.
10. Input Voltage : Single Phase 230 Volts Instruction manual will be provided.

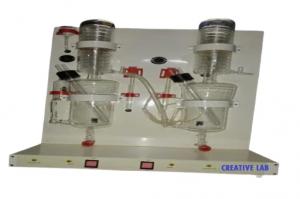

WATER DISTILLATION UNIT

WATER DISTILLATION UNIT
MAKE : CREATIVE LAB
MODEL NO : CLMEL-29

DESCRIPTION
Stainless steel wall mountable unit designed to provide Pyrogen free distilled water easily. Complete unit made of non corrosive Stainless Steel – Argon Welded. The lid perfectly rest and get inside the collar on head of the tank which avoids loss of steam and jumping of lid. Condenser can be opened easily for periodic cleaning. The Unit is fitted with immersion type heating element. It is provided with iron bracket to be fixed on the wall.
TECHNICAL SPECIFICATION
1. Stainless steel wall mountable unit
2. Distillation Water Capacity (LPH) :4
3. pH Value : 5-7
4. Conductivity (μS/cm) : ≤1
5. Numbers of Built in Quartz Heaters: 2
6. Distillation Units Type : Vertical
7. Distillate Temperature :25-70
8. Biological Activity : Pyrogen free
9. Built in Quartz Heater Capacity: 4 kilowatt
10. Double Stage Glass Distillation Units: Yes
11. Cooling Water Consumption (LPH) : 41
12. Auto Cut Off System : Yes
13. Input Voltage : Single Phase 230 Volts
Instruction manual will be provided along with the apparatus.

ELECTRONIC WEIGHING BALANCE

MAKE : CREATIVE LAB
MODEL NO:CLMEL-22

DESCRIPTION

An electronic balance also referred to as a digital balance or electronic scale is a precision instrument used to measure the mass of objects. These balances are commonly used in laboratories, manufacturing and other fields requiring accurate weight measurements.

TECHNICAL SPECIFICATION

Rated Load Capacity 200 g

Resolution 1 mg

LCD Display

Automatic Tare Calibration

Battery Backup up to 10 Hours

Input Voltage Single Phase 230 Volts Instruction Manual will be provided.

MELTING POINT APPARATUS

MAKE : CREATIVE
MODEL NO:CLMEL-19

DESCRIPTION

Consists of a metallic heating block made to receive three capillaries and a thermometer. The block is heated with superior quality element. A focusable lens gives a view of the capillaries which are illuminated by a shadow less lamp.

A heat regulator controls the heat. The whole unit is housed in a cast metal. Control panel consist of jewel light heat regulator and on off switch.

TECHNICAL SPECIFICATION

1. Metallic heating block.
2. Focusable lens.
3. Regulator to control the heat.
4. 03 numbers of capillaries & 01 number of thermometer positions.
5. Range: Ambient temperature to 250 °C
6. 01 Thermometer temp 250 °C with this Melting Point Apparatus.
7. Input Voltage : Single Phase 230 Volts

Instruction Manual will be provided.
