grease and petroleum.

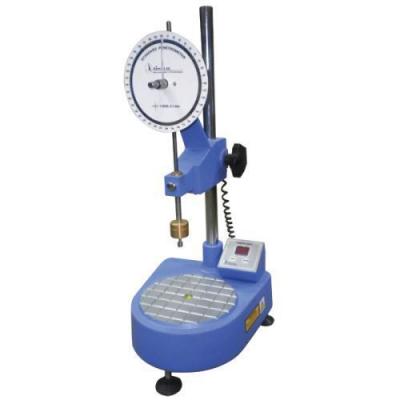

 Conforming to IS:1448 (Part 60).

 Should have a base with levelling screws on which a vertical pillar is mounted.

 Slipping clutch mechanism enable accurate measurement of penetration.

 Automatic timer.

 Operates on 220V, 50 Hz. Single phase AC supply.

 Penetration Needle

 Transfer Dish made of copper.

 Aluminium Sample Containers-Set of two.

 Power Source: Battery,

 Electric, Display Type: Digital, LCD Display,

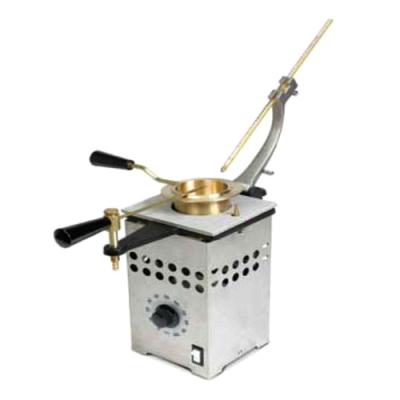

 Used for determining flash point of petroleum products (above 49°C flash point range).

 Brass coil cup fitted with a heat resistance handle.

 Flexible shaft is provided in the hand operated stirrer.

 The cup assembly is positioned in a cast iron air bath, fitted with a chrome plated brass top.

 Thermometer IP 15C Thermometer IP 16C

 . Suitable for operation on 220 V, 50 Hz, Single phase AC supply.

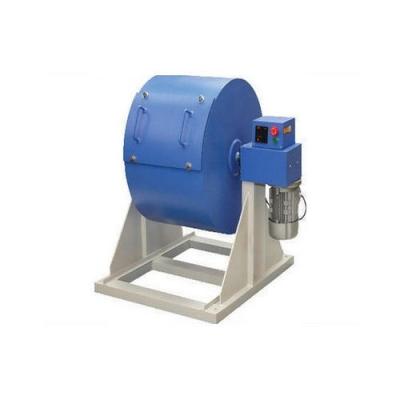

 Used for determining the resistance to wear off small size coarse aggregates and crushed rock.

 Machine consisting of hollow steel cylinder having an inside diameter of 700 mm and an inside length of 500 mm mounted on a sturdy frame on ball bearing capable of rotating about its axis in a horizontal position.

 A detachable shelf.

 Revolving speed of the drum - 30-33 rpm

 A revolution counter shall be provided to indicate the number of revolutions.

 Tray for collection of materials

 Abrasive Charge - The abrasive charge shall consist of 12 cast iron spheres 48 +/- 2 mm in diameter and each weighing between 390 and 455 g

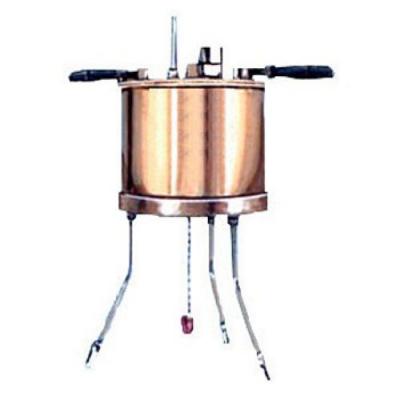

 Used for determining the Saybolt Viscosity of pertoleum products within 70-210 degree F temperature range and Saybolt Furol Viscosity of bituminous materials within 250-450 degree F temperature range

 comprises one each of Cylindrical Oil Cup, Universal Tip, Furol Tip, a stirrer, a receiving flask, a filter funnel, a withdrawal tube, a thermometer support

 Suitable for operation on 220 V, 50 Hz, Single Phase.
