VERNIER TRANSIT THEODOLITE

Description:

The vernier theodolite is also known as a transit. In a transit theodolite or simply transit the telescope can be rotated in a vertical plane. Earlier versions of theodolites were of the non-transit type and are obsolete now. The vernier theodolite is also known as a transit theodolite.

Specification:

Magnification 3X

Minimum Focus 2.2 mtrs

Accuracy 20 sec & 10 sec

Effective Aperture 38mm-40mm

Image Erect image

RANGING ROD

Description:

A ranging rod is a surveying instrument used for marking the position of stations, and for sightings of those stations, as well as for ranging straight lines. Initially these were made of light, thin and straight bamboo, or of well seasoned wood such as teak, pine or deodar. They were shod with iron at the bottom and surmounted with a flag about 250 mm square in size. Nowadays they are made of wood, metal or fibre glass. The rods are usually about 30 mm in diameter and 2 m or 3 m long, painted with alternating bands, such as red and white, red and yellow, or black and white, in lengths of 200 mm (i.e. one link length of metric chain), 500 mm, or one foot. These colours are used so that the rod can be properly sighted in case of long distance or bad weather. Ranging rods of greater length, e.g. 3 to 6 m, are called ranging or range poles, and are used for very long survey lines.

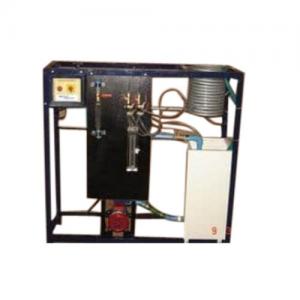

HELICAL COIL HEAT EXCHANGER MAKE : CREATIVE LAB MODEL NO: CLHT-15

DESCRIPTION:

The apparatus consists of fabricated shell, inside which coil tubes on outer side are fitted. The present set up is a heat exchanger, with cold water flows through shell. Valves are provided to control the flow rates of hot and cold water. Flow rates of hot and cold water are measured using Rotameters. A magnetic drive pump is used to circulate the hot water from a re-cycled type water tank, which is fitted with heaters and Digital Temperature Controller.

EXPERIMENTATION:

The main object of the experimental setup is to study the following at various flow rates:
LMTD
Heat transfer rate
Overall Heat Transfer Co-efficient.

UTILITIES REQUIRED

Electricity Supply: 1 Phase, 220 V AC, 50 Hz, 32 amp MCB with earth connection (Earth voltage Would be less than 5 volts)
Water supply: 5 lit/min (approx.)
Floor Drain.
Floor area: 1.5 m x 0.75 m.

TECHNICAL DETAILS

System : Water to Water.
Shell. : Material Stainless steel.
Insulated with ceramic wool and cladded with aluminum foil.
Dia. 220 mm,
Length 500 mm (Approx.)
Tube : ID 13 mm,
OD 16mm approx.,
Coil Type Water
Flow Measurement : Rotameters (2Nos.) one each for cold & hot fluid.
Hot Water Tank : Made of Stainless steel Insulated with ceramic fibre wool.
Hot Water Circulation : Magnetic Pump
Heaters : Nichrome wire heater (2 Nos.)
Control panel comprising of: Digital Temp.
Controller : PID Controller, 0-199.9°C, (For Hot Water Tank)
Digital Temp. Indicator : 0-199.9°C, with multi-channel switch
Temperature sensors : RTD PT-100 type. With Standard make On/Off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus

TRIAXIAL SHEAR TEST APPARATUS

DESCRIPTION

Multi rate of strain.

Designed to accommodate Universal Triaxial Cell for testing soil

Specimens up to 100 mm in diameter. A turret type motor drive

gear unit to give 30 different rates of strain ranging from 6 mm/min down to 0.00048 mm/min

The motor and gear box assembly are housed in an elegant free

standing console and electrical controls have been provided on the

front panel of the load frame. Suitable for operation on 220V, 50

Hz, Single phase supply. HS28.05 Triaxial Cell

For 38mm diameter x 76 mm high specimen 50 mm diameter x 100 mm high specimen

Suitable for lateral pressure up to 1000 kpa, the cell has four take off positions drilled in the base for cell pressure, pore water pressure, and for top and bottom drainage.Fitted with 3 no-volume change valves and one dead end plug.

Cell is supplied complete with one loading pad, two porous stones, one sheath stretcher, one split sand former, 10 latex rubber sheaths and four sealing rings for 38 & 50 mm dia

samples

HS28.118 Pneumatic Control Panel, 2 lines

The unit have precision pressure regulators for controlling confining

Pressure, backpressure. Capacity: 10.5 kg/sq cm. complete with Mechanical volume change Appts.

HS30.230 Proving Ring 10 kN capacity

HS29.15 Dial gauge 0.01 X 25mm

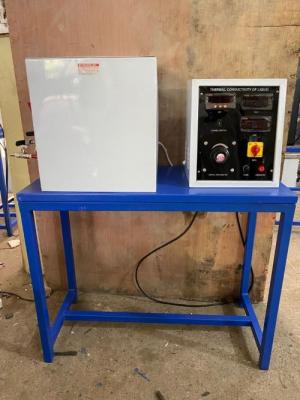

THERMAL CONDUCTIVITY OF LIQUIDS

MAKE :CREATIVE LAB
MODEL NO:CLHT-20

DESCRIPTION:

The apparatus is designed to determine thermal conductivity of different liquids. The apparatus consists of a heater. The heater heats a thin layer of liquid. A cooling plate removes heat through liquid layer, ensuring unidirectional heat flow. Temperature is measured across the liquid layer and complete assembly is properly insulated. A proper arrangement for changing the liquids is provided. The whole assembly is kept in a chamber.

EXPERIMENTATION:

Determination of thermal conductivity of liquid.

Study of variation of thermal conductivity of liquid with temperature.

UTILITIES REQUIRED:

Water supply 5 lit/min (approx.)

Drain.

Electricity Supply: 1 Phase, 220 V AC, 2 Amp.

Table for set-up support.

TECHNICAL DETAILS:

Liquid Chamber Dia 160 mm (approx.).

Heater Dia 100 mm sandwiched between copper plates.

Insulation Ceramic Wool

Cooling chamber Made of Aluminium for water circulation.

Control panel comprising of :

Digital Voltmeter 0-300 Volt.

Digital Ammeter 0-2 Amp.

Variac 0-230 V, 2 Amp.

Digital Temp. Indicator 0-199.90C, with multi-channel switch

Temperature Sensors RTD PT-100 type.

With standard make On/Off switch, Mains Indicator etc.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

Valves are provided for drain, charging & overflow line to make system flexible.

MS Cabinet to accommodate the slab assembly.
