DIRECT SHEAR APPARATUS

Description:

Information of Shear values plays an important role the design of sub-structures in determining bearing capacity of soils, design of retaining walls, instability calculation earth slopes etc. Various Shear Apparatus are available and Direct Shear Apparatus is one of them. In Direct Shear test specimen contained in a box is subjected to a constant normal load and increasing horizontal load is applied to the upper section of the specimen. Shear force and load are directly measured. For determination of the direct shear strength of soils on specimen size 60 mm x 60 mm x 25 mm.

Specification:

The apparatus comprises of the following:

Loading Unit: Supplied with load yoke with direct and lever system for applying load. Normal stress capacity 8kg/sq.cm. Load is applied either directly of through a counter balanced detachable lever. Provision is made for load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.

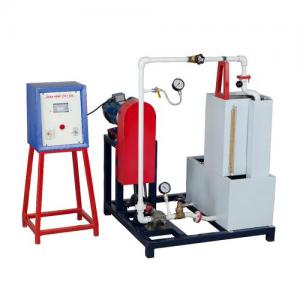

GEAR PUMP TEST RIG VARIABLE SPEED WITH SWINGING FIELD DYANOMETER MAKE : CREATIVE LAB MODEL NO:CLFM-45

DESCRIPTION :

The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a swinging frame type DC Motor which permits direct torque measurement with the help of a spring balance. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.

EXPERIMENTATION:

To determine total head, pump output, overall efficiency and pump efficiency.

To plot Graph:

Head vs Discharge

Pump efficiency vs Discharge.

UTILITIES REQUIRED:

Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth

Connection.

Oil: SAE 20W 40(30 lt.)

Drain required

Floor Area Required: 1.5 x 0.75 m.

TECHNICAL DETAILS:

Pump : Speed 1500 RPM (max.) Capacity 1 HP, Head 5kg/cm2 (max.)

Medium Flow : Clear Oil.

Drive : 1 HP DC motor swinging frame type with Thyristor controlled

DC Drive for variable speed.

Spring Balance : Dial type.

Sump Tank : Capacity 35 Ltrs. (approx.)

Flow Measurement : Using Measuring Tank (Capacity 20 Ltrs. (approx.)) and Electronic Stop Watch

Pressure Gauge : Bourdon type

Vacuum Gauge : Bourdon type

Control Panel Comprises of :

RPM measurement: Digital RPM Indicator with Proximity sensor.

Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure

UNIVERSAL TESTING MACHINE ELECTRO MECHNICAL TESTING

STRAINING SYSTEM :

1. 50 KN capacity Computerized electromechanical table top universal testing machine.

2. System would have features for manual Jog up. jog down and stop buttons so the crosshead can be positioned for easy specimen loading.

3. Programable travel limit switch with enclosed alarm rod for protection

4. Crosshead Travel would be 1000 mm or more.

5. Distance between the columns would be 400mm or higher.

6. Strain rate (or test speed) : 0.001-500 mm/min up to 25KN load and 0.001 250 mm/min up to 50KN load. Speed resolution 0.1μm or better

7. Return speed would be 0.001 500 mmmin or better

8. Crosshead positioning speed would be 0.001-500 mm/min or better.

9. Crosshead positioning accuracy would be + 0.05% of indicated speed

10. Crosshead positioning resolution would be 0.1μm or better.

11. Return to zero function after completion the test would be available.

12. Extension measurement Resolution would be 0.1μm or better

13. Extension measurement Range would be 0.1μm to 1000mm or better

14. Extension measurement Internal sampling rate would be 2.7kHz or higher.

15. Emergency Stop button at easy accessible location

16. Frame Stiffness would be 100kN/mm or better

17. Force protection and displacement protection system would be available.

18. Built-in pneumatic distribution ports would be available in frame for local air supply to pneumatic grips.

19. Crosshead driven would be DC servo motor.

20. Machine would have future upgradation features like Furnaces and environmental chambers can be installed in the machine when required.

HYDRAULIC TRAINING KIT MAKE: CREATIVE LAB MODEL NO:CLTD-21

Description

Hydraulic Training Kit The Hydraulic Training Kit would be hydraulic based standalone training kit which would cover pure hydraulic systems, Electro hydraulic systems & Analysis and control technology. The kit would have items for PC-supported acquisition, representation and documentation of analogue measured values in hydraulic components and systems. The kit would facilitate learning and demonstration of following topics:

FEATURES:

Self-combined mobile unit.

All the components are easily accessible.

Real life components of reputed manufacturers provided.

Quick connections possible due to special fittings/pipes.

Tried and tested components and circuits.

PLC with MODBUS communication.

PLC with software with help file

Specially designed control panel enabling students to develop their own circuits

Modular design with facilities to operate simple mechanisms

Pneumatically operated models available as additional supply

Training of Trainers offered at regular intervals

Three years performance guarantee for any manufacturing defect

TECHNICAL DETAIL

List of Experiments:

Study of pressure built up & setting relief valve pressure in hydraulic system

Study of 4/3 way direction control valve

Operation of single acting cylinder with 4/3 way direction control valve

Operation of double acting cylinder with 4/3 way direction control valve

Operation of hydraulic motor with 4/3 way direction control valve

Study of sequence valve

Sequencing of double acting cylinder & single acting cylinder

Sequencing of single acting cylinder & hydraulic motor

Meter- in speed control of hydraulic cylinder

Meter-out speed control of hydraulic cylinder

Study of bleed- off speed control circuit

Study of Pressure adjustment /setting of relief valve

Study of Throttle valve pressure flow characteristics

Study of direction control valves and pilot operated check valves and circuits

Study of Regenerative Circuit

Study of pressure reducing valve

Study of sequence valve and setting sequence valve pressure

LIST OF COMPONENTS:

Trolley with frame & caster wheels

Hydraulic tank with filter & breather

Single phase flange mounted electric motor

Pressure Gauges

Gear Pump

Bell Housing

Flexible Coupling

Pressure Relief Valve

Flow Control Valve

Pressure Sequence Valve

4/3 way manually operated direction control valve

Single Acting Cylinder

Double Acting Cylinder

Needle Valve

Study of sequence valve and setting sequence valve pressure

Hoses

Check Valve

Pilot Operated Check Valve

Hydraulic Motor

Quick Coupling

Instruction manual will be provided along with the apparatus.

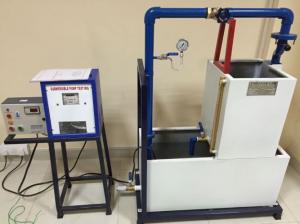

SUBMERSIBLE PUMP TEST RIG MAKE : CREATIVE LAB MODEL NO:CLFM-46

DESCRIPTION:

The present Submersible Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Submersible Pump, which is mounted horizontally with sump tank. Flow of fluid is measured by using measuring tank and stop watch.

EXPERIMENTATION:

To determine total head, pump output, overall efficiency and pump efficiency of the submersible pump.

To plot Graph

Head vs Discharge

Pump efficiency vs Discharge

Pump HP vs Discharge.

UTILITIES REQUIRED :

Electricity Supply: Single Phase, 220 VAC, 50 Hz, 5-15 amp combined socket with earth connection.

Water Supply (Initial Fill).

Floor Drain required.

Floor Area Required: 1.5m x 0.75m

TECHNICAL DETAILS :

Pump : Submersible, Capacity 1 HP.

Medium Flow : Clear Water.

Sump Tank : Capacity 120 Ltrs.

Flow Measurement : Using Measuring Tank (Capacity 90 Ltrs.) & Electronic Stop Watch

Pressure Gauge : Bourdon type

Control Panel Comprises of :

Energy measurement : Energy meter Electronic, L&T make.

MCB : For overload protection.

Standard make On/Off Switch, Mains Indicator, etc.

Instruction Manual : An ENGLISH instruction manual will be provided along

with the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structure.
