PELTON TURBINE TEST RIG

MAKE : CREATIVE LAB
MODEL NO:-CLFM:-48
DESCRIPTION:

Pelton Wheel Turbine is only impulse water turbine now in common use named in honour of Sir L. A. Pelton (1829-1908) of California, USA. It is a tangential flow impulse turbine. The water strikes the buckets along the tangent of the runner. The energy available at the inlet of the turbine is only kinetic energy. The pressure at the inlet and outlet of the turbine is atmospheric. This turbine is used for high heads. The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Flow of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.

EXPERIMENTATION:

To study the operation of a Pelton Wheel Turbine.

To determine the Output Power of Pelton Wheel Turbine.

To determine the Turbine Efficiency.

UTILITIES REQUIRED

Water Supply and Drain.

Electricity 5 kW, 440V AC, Three Phases.

Floor Area 1.5 x 0.75 m

TECHNICAL DETAILS:

Output Power: 1 kW.

Discharge: 400 LPM (Approx.)

Supply Head: 25 m

Speed: 1000 RPM (Approx.)

Nozzle: Material Stainless Steel.

Spear: Material Stainless Steel.

Dynamometer: Rope Brake type.

Sump Tank: Capacity 200 Ltrs.

Water Circulation: Centrifugal Pump, Standard make, Capacity 5 HP,

Three Phase, 2800 RPM

Discharge Measurement: Pitot tube with Manometer

Control Panel Comprises of:

L&T make Starter, Mains Indicator, and MCB for overload protection.

Instruction Manual: An ENGLISH instruction manual will be provided along

With the Apparatus Tanks will be made of Stainless Steel.

The whole set-up is well designed and arranged in a good quality painted structur

PEGS

Specifications:

Wooden pegs are used to mark the positions of stations. They are made of hard timber and are tapered at one end they are usually, 2.5 cm square and 15 cm long, but in soft ground, pegs 40 to 60 cm long and 4 to 5 cm square suitable.

TILTING LEVEL

Specifications:

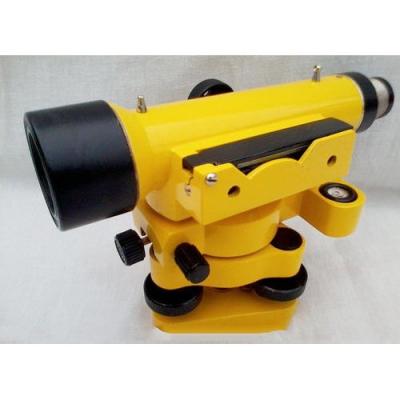

Tilting level consist a telescope which enabled for the horizontal rotation as well as rotation about 4 degree in its vertical plane. Centering of bubble can be easily done in this type of level. But, for every setup bubble is to be centered with the help of tilting screw.

AUTOMATIC LEVEL

Specifications:

An Auto Level is a Professional Leveling Tool used by Contractors, Builders, Land Surveying Professionals, or the Engineer who demands accurate leveling every time.

SPIRIT LEVEL

Specifications:

Spirit Level is an instrument designed to indicate whether a surface is horizontal (level) or vertical (plumb). A spirit level is used for determining horizontal and vertical levels and can be used on a variety of DIY projects in and around the home. A spirit level is used to design to indicate whether a surface is level on the horizontal or vertical planes, and there are a variety of sizes and designs for every project.
