LFWD test
TECHNICAL DETAIL
Impact Load Range: up to 130KN, preset value is 50KN
 Dynamic Force Range: 0~200KN (Extendable)
 Load Testing Accuracy: ≦1%
 Displacement measuring Range: ±3500μm
 Deflection Accuracy: ≦2%
 Testing Speed per Point: <20s/point (3 drops)
 Bearing plate size: Dia. 300mm
 With special GPS function, can supply data checking &
 analysis with future testing result at some point
 Hammer weight: 450kg
 Testing speed per point: <30s
 Deflection type: magnetoelectic speed sensor
 Deflection range: 2500μm
 Deflection resolution: 1μm
 Deflection accuracy: 2%
 Temp. Sensor: 3pcs
 Temp. Measuring range: -200C ~ 1000C
 Temp. Resolution: 0.10C
 Temp. Accuracy: 0.5%
 DMI sensor type: pulse coder
 DMI sensor: 1pc

Multispeed tester, Marshal Hammer, Moulds, Testing Jig
TECHNICAL DETAIL
 Standards - ASTMD1559 BS:598-197, EN-12697-34
 Measurement of
 the resistance to plastic flow of cylindrical specimens of
 bituminous paving mixture loaded on the lateral surface.
 The machine can provide measurement data for use with hot mixture containing asphalt or tar and aggregate up to 25.4mm maximum size.
 Suitable for operation on 220V, 50 Hz, single phase, AC supply.
 Single Speed, Bench top load frame.
 Max. loading capacity, 50 KN
 Specifications :-
 Maximum Vertical Clearance = 470mm
 (Platen Down, Cross-head up)
 Minimum Vertical Clearance = 250mm
 (Platen up, Cross-head down)
 Horizontal Clearance = 265mm
 Platen Diameter = 133mm
 Platen Travel = 25mm
 Platen Speed = 50.8mm/min
 Rated Power = 375W

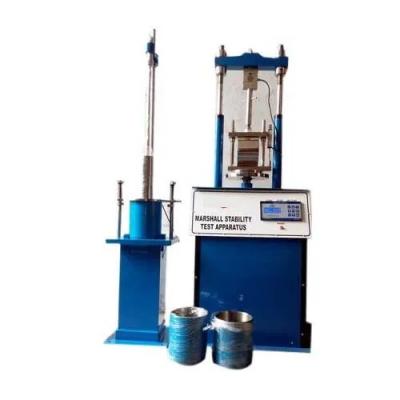

 Breaking Head Stability Mould 1 No.
 Compaction Mould Steel, cylindrical 3 Nos.
  Base Plate 3 Nos.
  Extension Collar 3 Nos.
  Compaction Pedestal, 1 No.
 A Mould Clamp is fitted to the top of the plate
  Compaction Hammer 2 Nos. for use with Compaction Pedestal and Mould, weight 4.5 kg with a free fall of 457 mm
  Load Transfer Bar 1 No.
  Sample Eject for 4” dia Sample 1 No.
 Electronic Conversion Kit for Marshall apparatus
  Digital Indicator two channel
  Load Cell 50 kN
  Displacement Transducer LVDT 20 mm
  Dial Gauge 25mm travel,0.01mm least count 1 No.
 Proving Ring capacity 25 kN. 1 No.

REFRIGERATION TEST RIG
MAKE : CREATIVE LAB
MODEL NO:CLRAC-01

DESCRIPTION
The set up demonstrates the students about the basic principal of a refrigeration cycle. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation.
EXPERIMENTATION:
To calculate refrigerant capacity.
To Study the Vapour Compression refrigerator cycle.
To Calculate Co-efficient of performance and draw P-H Diagram.
UTILITY REQUIRED:
Electric supply 5A-220 V AC
Water supply and drainage
Floor area : 1.5 m x 1m
TECHNICAL DETAIL:
Compressor Hermitically sealed compressor.Capacity 1/4 Ton, Kirloskar make.
Agitator Compatible capacity.
Condenser Air cooled compatible to 1/4 Ton compressor
Condenser Cooling fan Compatible capacity with permanent lubricated motor.
Evaporator Made of Stainless Steel, Insulated with ceramic wool/P.U.F.
Expansion Device Capillary Tube, Compatible Capacity.
Pressure Gauges 2 Nos.
Safety Control   overload and over current protectors for compressor and Time delay circuit.
Temperature Sensor RTD PT-100 Type.
Control Panel comprises of
Digital Voltmeter 0-300 V
Digital Ammeter  0-5 Amp.
 Temperature Measurement Digital Temperature Indicator with multi-channel switch.


MINIATURE COMPACTION APPARATUS
 Description:
This is used for rapid determination of moisture content dry density relation using a constant weight of dry soil passing through 75 micrometer IS sieve.
Specification:
It consists of the following:
It consists of a metal cylindrical tube having 50mm I.D and 435 mm height, a detachable base plate and a cap are provided for this tube.
8. nos. 1.5 mm dia. holes equally spaced are drilled at a height of 100mm from the base of the tube.
A metal rammer 48mm dia. x 48.5 mm in height is attached to a metallic rod with knob, so as to have a combined height of about 550 mm and a total weight of 2.6kg. This rammer is adjusted for a free fall of 310mm.
The graduations in millimeters and centimeters are marked on this rod, to coin side with zero (0) of the scale with the cap of the tube.
Graduation is marked downward 0 to 8 cm with millimeter divisions.
Plate has internal diameter of 50mm dia.
OD of 140 mm and height of 25mm is supplied with flange and wing nuts for easily introducing soil sample and removing it.


RELATIVE DENSITY APPARATUS
 Description:
This apparatus is used for the determination of the relative density of cohesionless free draining soils and meets the essential requirements of IS 2720 (Part-XIV).
Specification:
It consists of the following:

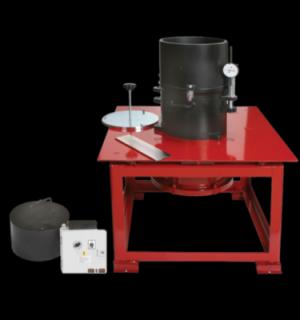

The equipment consists one each of: Vibratory table with a cushioned steel vibrating deck about 75 cm x 75 cm.
It has a frequency of approximately 3600 vibrations per minute under a 115 kg load.
Amplitude is variable in between 0.65mm in steps of 0.05 to 0.25mm, 0.25 to 0.5mm and 0.45 to 0.65mm.
Suitable for operation on 415 volts, three phase supply.
Cylindrical metal unit with mould, 3000 ml capacity.
Guide Sleeve with clamp assembly.
Surcharge base plate for mould.
Surcharge weight.
The total weight together with surcharge base plate and handle is equivalent to 140kg./sq.cm. for mould.
Cylindrical metal unit weight mould 15000ml capacity.
Surcharge base plate for guide sleeve.
Surcharge weight for cylindrical mould of 15000 ml. cap. (Total weight together with the above mould 8 surcharge weight is equivalent to 140 kg./sq.cm.)
Dial gauge holder & calibration bar 75 c 300mm x 3mm.
