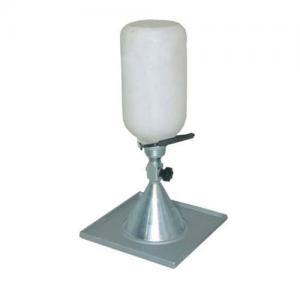

The Sand Density Cone and accessories are used for determination of the in-situ (in-place) density of soils. The apparatus is restricted to tests in soils containing particles not larger than 2" (50.8 mm) in diameter. The Sand Density Cone consists of a double cone assembly with a brass valve and comes supplied with a one-gallon (4,000 cm3) capacity sand jug. The Field Density Plates are used in conjunction with the Sand Density Cones. The center opening of the plate can be used as a template to control the diameter of the hole and the plate itself is used as a shelf to prevent the loss of soil during the removal operation.









Universal Testing Machine Computerized 1000 KN capacity. 6 pillar, with Hydraulic Jaws

Resolution: 0.01 Kn

Maximum clearance for tensile test: 50-850 mm

Maximum clearance for compression test : 0-850 mm

Clearance between columns: 750 mm. 5

Clamping specimen jaws for flat specimen thickness: 0-40 mm

Pair of compression plates: 220 mm dia

Ram stroke: 250 mm

Straining speed at no load: 0- 80 mm

Computer 500 GB hard discmonitor supports 1024 x 768 resolution & printer will be provided.

Loading accuracy as high as ± 1% of the indicating value

Strain measurement at variable speed to cover a wide range of materials adjustable by  the manual control valve.

High reading accuracy and rugged design of digital display.

Simple control to facilitate ease of operation.

Fully enclosed and protected load measuring system.

Robust load frame with extremely rigid construction.

Large effective clearance between columns enables testing of standard specimen as well  as structures.

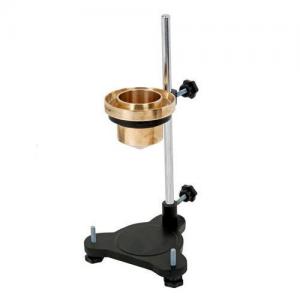

Flow Cup Viscometers are useful for determining the flow time of paints varnishes, lacquers and other viscous products.



They consist of a metallic container with specified dimensions and volume, incorporating and orifice.



The sample flows through the orifice and the variations in running time indicate the variations in viscosity of the product, due to blending and dilution.
