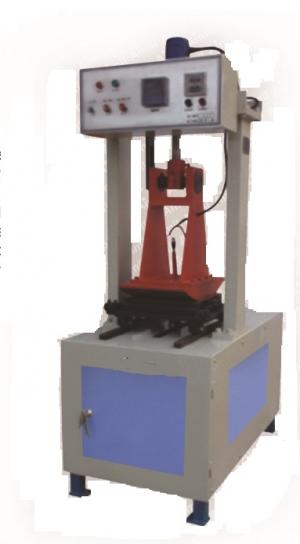

WHEEL RUT TESTER

Description:

The wheel rut tester is used to determine the resistance ability to wheel tracking at high temperature of bituminous combined material. The machine has two main parts i.e. testing machine and constant temperature cabinet, temperature is controlled by PIO controller. This consists essentially of a loaded wheel, which bears on a sample held on a moving table. The table reciprocates with simple harmonic motion. The wheel is fitted with a solid rubber tyre and moves at a speed of 42+/-1 rpm and the sample table is fitted with a locking clamp for 230 +/- 10 mm. The machine is also provided a moving beam and balance weight to adjust the tyre position on and off the specimen at the beginning and at the end of the test. The pressure between table and specimen is ensured at 0.7 Mpa with the leverage effect of moving beam. Furthermore temperature sensor is provided near the specimen to maintain the temperature of the cabinet. The test is automatically controlled by a data acquisition and processing system with large graphic display to monitor in real time number of cycles, rut depth and temperature and time displacement graph.

WINDOW AIR CONDITIONING TEST RIG MAKE : CREATIVE LAB MODEL NO:CLRAC-04

DESCRIPTION:
The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.

EXPERIMENTATION:

· To study the Vapour Compression air conditioning cycle.

· To Calculate Co-efficient of performance- (COP) by the use of P-H diagram.

UTILITY REQUIRED:

· Electric supply 5A-220 V AC

· Floor area : 1.5 m x 1m

TECHNICAL DETAIL:

· Compressor Hermitically sealed compressor. Capacity 1 Ton, Kirloskar make.

· Condenser Air cooled compatible to 1 Ton compressor

· Condenser Cooling fan Compatible capacity with permanent lubricated motor.

· Pressure Gauges 2 Nos.

· Evaporator Compatible to 1 Ton, made of copper tube and aluminum fins fitted with compatible capacity fan.

· Safety Control over load and over current protection for Compressor with Time delay circuit.

· Expansion Device Capillary Tube compatible capacity.

· Temperature Sensor RTD PT-100 Type.

· Temperature Measurement Digital Temperature Indicator with multi-channel switch.

· Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus.

· All Other accessories like Hand shut off valves, filter drier and Thermostat, Pressure gauges will be provided.

· All the accessories will be mounted as rigid base frame made of M.S. and it will be powder coated.

WINDOW AIR CONDITIONING TEST RIG MAKE : CREATIVE LAB MODEL NO:CLRAC-04

DESCRIPTION:

The Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the air conditioning system.

EXPERIMENTATION:

· To study the Vapour Compression air conditioning cycle.

· To Calculate Co-efficient of performance- (COP) by the use of P-H diagram.

UTILITY REQUIRED:

· Electric supply 5A-220 V AC

· Floor area : 1.5 m x 1m

TECHNICAL DETAIL:

· Compressor Hermitically sealed compressor. Capacity 1 Ton, Kirloskar make.

· Condenser Air cooled compatible to 1 Ton compressor

· Condenser Cooling fan Compatible capacity with permanent lubricated motor.

· Pressure Gauges 2 Nos.

· Evaporator Compatible to 1 Ton, made of copper tube and aluminum fins fitted with compatible capacity fan.

· Safety Control over load and over current protection for Compressor with Time delay circuit.

· Expansion Device Capillary Tube compatible capacity.

· Temperature Sensor RTD PT-100 Type.

· Temperature Measurement Digital Temperature Indicator with multi-channel switch.

· Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus.

· All Other accessories like Hand shut off valves, filter drier and Thermostat, Pressure gauges will be provided.

· All the accessories will be mounted as rigid base frame made of M.S. and it will be powder coated.

ICE PLANT TRAINER MAKE : CREATIVE LAB MODEL NO:-CLRAC-05

DESCRIPTION:

The unit enables the students to study the Basic Principals of ice plant cycle within a short period. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. Ice cans are kept in liquid tank, which is cooled by the refrigerant evaporator. As conventional ice plants take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate process of ice formation to be complete within period of 4 hours and hence it is most suitable for laboratory use.

EXPERIMENTATION:

To study the working of Ice Plant.

To Study the refrigerator circuit.

To Calculate Co-efficient of performance

UTILITY REQUIRED:

Electric supply 5A-220 V AC

Water supply and drainage

Floor area : 1.5 m x 1m

TECHNICAL DETAIL:

Compressor Hermitically sealed compressor, Kirloskar make.

Tank The inner tank shall be fabricated out of stainless steel

Condenser Air cooled compatible to compressor

Condenser Cooling fan Compatible capacity with permanent lubricated motor.

Evaporator Made of Stainless Steel, Insulated with ceramic wool/puf.

Expansion Device Capillary Tube Compatible capacity.

Pressure Gauges 2 Nos.

Safety Control overload and over current protectors for compressor and Time delay circuit.

Temperature Sensor RTD PT-100 Type.

Control Panel comprises of

Digital Voltmeter 0-300 V

Digital Ammeter 0-5 Amp.

Temperature Measurement Digital Temperature Indicator with multi-channel switch.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

All Other accessories like filter drier will be provided.

All the accessories will be mounted on rigid base frame made of M.S. and it will be powder coated.

TRIAXIAL SHEAR TEST APPARATUS

DESCRIPTION

Multi rate of strain.

Designed to accommodate Universal Triaxial Cell for testing soil

Specimens up to 100 mm in diameter. A turret type motor drive

gear unit to give 30 different rates of strain ranging from 6 mm/min down to 0.00048 mm/min

The motor and gear box assembly are housed in an elegant free

standing console and electrical controls have been provided on the

front panel of the load frame. Suitable for operation on 220V, 50

Hz, Single phase supply. HS28.05 Triaxial Cell

For 38mm diameter x 76 mm high specimen 50 mm diameter x 100 mm high specimen

Suitable for lateral pressure up to 1000 kpa, the cell has four take off positions drilled in the base for cell pressure, pore water pressure, and for top and bottom drainage.Fitted with 3 no-volume change valves and one dead end plug.

Cell is supplied complete with one loading pad, two porous stones, one sheath stretcher, one split sand former, 10 latex rubber sheaths and four sealing rings for 38 & 50 mm dia

samples

HS28.118 Pneumatic Control Panel, 2 lines

The unit have precision pressure regulators for controlling confining

Pressure, backpressure. Capacity: 10.5 kg/sq cm. complete with Mechanical volume change Appts.

HS30.230 Proving Ring 10 kN capacity

HS29.15 Dial gauge 0.01 X 25mm
