DESCRIPTION:

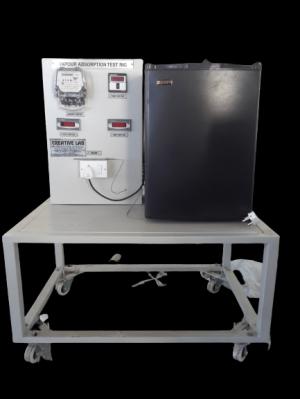

The set up demonstrates the students about the basic principal of a vapour absorption refrigeration cycle. The test rig is designed for the study of thermodynamics of vapour absorption refrigeration cycle by measuring temperature at different position.
EXPERIMENTATION:
To Calculate Co-efficient of performance.
UTILITIES REQUIRED
Electric Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. combined socket with earth connection.
Floor Area : 1.5 m x 1m
TECHNICAL DETAILS
small scale demonstration of common industrial refrigeration and air conditioning processes.
The refrigeration process, carry out in-depth analysis of heat transfer process,Mode of System Externally heated by electric resistanceEvaporator Coil Type evaporator with facility to determine performance efficiency ratio (PER)
Control Panel comprises of
Digital Voltmeter 0-300 V
Digital Ammeter 0-5 Amp.
investigate the coefficient of performance and perform full energy balance across the system.Sealed Circuit The System has no moving parts at all, which makes it Silent and very durable.
Refrigerant Mixture of three fluid system Ammonia(NH3) + Water (H2O) + Hydrogen (H2)
Gases Non – CEC, Non – HCFC, Non – FCKW, Non – Freon
Mode of System Externally heated by electric resistance
Evaporator Coil Type evaporator with facility to determine performance efficiency ratio (PER)
Volume of Cabinet 41 Ltrs., Voltage Input – 65 Watt. |
