Clinometer

TECHNICAL DETAIL
This manipulative is to measure angle of elevation or depression of any objected. This model con be used to find height and distance of a building etc. Provided in durable box. Optical adjustment for reading

Tacheometer

Specification: 5 digits 18 mm(0.6 ″)white backlight LCD Accuracy: ±(0.05%+1digit) Sampling Time: 0.5sec(over 120RPM) Range Select: Auto-Switch Memory: Max. value, Min. value, Last value Can store 96s data Time Base: 6MHz Quartz crystal Detecting Distance: 50~500mm Power Consumption: Approx 55mA Measuring range: 2.5~99999RPM Resolution: 0.1RPM (2.5~999.9RPM) 1RPM (over1000RPM) Total Test Range: 1~99999 Frequency Range: 1~1666.6Hz Resolution: 0.01Hz Time Base Accuracy: 10x10- 6(0~50°C) Power: 3×1.5V AA battery

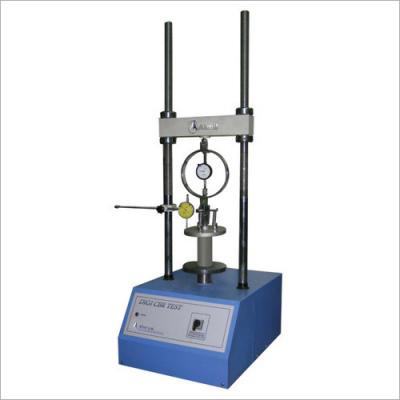

UNCONFINED COMPRESSION TESTER

Digital Load Frame with LCD 50 kN Capacity with 4 Speed variations.

• Horizontal Clearance - 265 mm

• Vertical clearance - 700 mm

• Maximum Platen dia - 130 mm

• Maximum Platen Travel - 100mm

• Ram Dia - 50mm

• Suitable for operation on 220 V, 50 Hz, single phase, AC supply.

• Ring capacity - 2 kN

• Dial Gauge - 25 mm, 0.01 mm least count.

• Mould - 38 mm dia × 76 mm long

• Rubber Sheath - 38 mm dia specimen

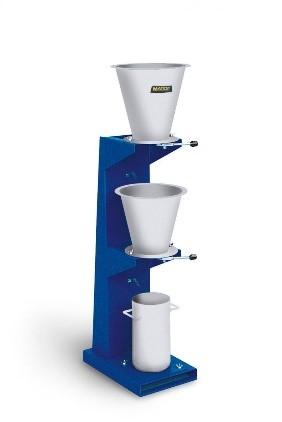

COMPACTION FACTOR APPARATUS

Material of Construction: Special quality low carbon mild steel.
Paint quality:-Powder coating 70-80 micron thick for determination of workability determination of concrete mixes of very low workability such as those normally used with concrete, compacted by vibration. Concrete mix having maximum size of aggregate not exceeding 38 mm, can be tested for workability. Compaction Factor Apparatus is complete with hoppers and receiver assembly, Tamping Rod of 16 mm dia x 60 cm long having a Hooper and two trowels. As per IS- 1199, 5515 & BS 1881-103

COMPACTION FACTOR APPARATUS
