ROD MILL MAKE : CREATIVE LAB MODEL NO:CLMO-05

DESCRIPTION:

Rod Mills are horizontal rotating cylindrical steel chamber of half filled with steel rods of length slightly less than the length of chamber. The rods are of different diameter. The size reduction is accomplished by the impact of rods as they fall back after being lifted by the rotating chamber. Rod Mill is fitted on a sturdy MS frame. Charging of rods and material is done by the means of opening provided in the chamber. The chamber is turning about the horizontal axis through a reduction gearbox drive through a ½ HP motor. The stepped pulley arrangement is done for moving the Rod Mill at three different speeds. A revolution counter is provided to find out the number of turns. Special arrangement is done to free the Rod Mill from reduction gearbox for charging and discharging the material.

EXPERIMENTATION:

To study effect of RPM on the power consumption of a Rod Mill.

To determine the efficiency of a Rod Mill for grinding a material of known Wi.

UTILITY REQUIRED:

Raw Material for Feed.

Electric Supply: Single phase, 220 V AC, 1 kW.

Set of Sieves with Sieve Shaker for analysis.

Floor area 1.5 x 1m

TECHNICAL DETAIL:

Rod Mill Material MS

Dia 275mm, Length 350mm. Thickness 5 mm.

Discharge Chute Suitable size.

Drive ½ HP motor coupled to Reduction Gearbox & 3 step pulley to get 40, 50 and 60 RPM (Approx.)

Revolution Counter Mechanical type.

Product receiver Material Stainless Steel of suitable size.

Control Panel Comprises of

Energy Measurement Electronic Energy meter.

MCB For overload protection.

Standard make on/off switch, Mains Indicator etc.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

The set-up is fitted with required guards.

The whole set-up is well designed and arranged in a good quality painted structure.

SOIL HYDROMETER

Description:

Soil Hydrometer is ssed for grain size analysis of soils where more than 10% of the material will pass through 75 microns I.S. sieve.

Manufactured from clear transparent glass having uniform clarity throughout the upper end on which density scale is engraved.

The scale range is 0.0995 to 1.030 density (gms/cc) at 270C. Smallest division on the scale is 0.0005.

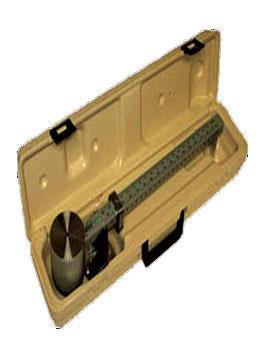

MUD BALANCE

Description:

Mud balance is designed to find out specific gravities of Semi Liquids like mud and other liquids. Mud Balance is a simple method for fast and accurate determination of density of the drilling mud.

Specification:

• It has a Stainless Steel bam calibrated specific gravities from 0.8 to 2.5.

• A stainless steel cup with lid and overflow vent is fitted on one side of the beam.

• A counter weight with cursor slides over the graduated scale.

• The beam has a knife edge at centre which rests in fulcrum fitted in the stand.

• Leveling screws and spirit level are fitted dot the stand.

HAMMER MILL MAKE : CREATIVE LAB MODEL NO:CLMO-06

DESCRIPTION :

Hammer mill consists of Pivoted hammers, mounted on a horizontal shaft. Crushing takes place by impact between the hammers and anvil plate. The hammers delivers heavy blows to the feed material while it is in suspension, driving it against an anvil plate until it is fine enough to pass through the opening of the mesh fitted in the bottom of the Mill.The present Hammer Mill has sturdy housing that contains 4 Nos. of T shaped hammers, pivoted to a disc, which is fitted with the shaft of the mill turning about the horizontal axis. The shaft is directly coupled to a motor. The housing contains a semi-circular teethed liner (or anvil plate) on the top of it. A glass window to see through in the Mill is fixed on the front cover, which can be opened to change the sieve. Different mesh sizes are provided to get different product size. A hopper with feed opening and adjustment is provided in the Mill. The crushed material is collected in a receiver provided in the set-up. This mill can accept a feed size of 6.5mm or less.

EXPERIMENTATION:

To study the operation of a Hammer Mill.

UTILITIES REQUIRED :

Raw Material for Feed.

Electric Supply : 3 Phase, 440 V AC, 2 kW.

Set of Sieves with Sieve Shaker for analysis.

Floor area 0.5 x 0.5m

TECHNICAL DETAILS

Hammer Mill Housing

Material Stainless Steel, Dia 145mm, Depth 75mm

Feed Size 6mm approx.

Product Size 60 - 150 mesh approx.

Hammers Material Stainless Steel, Anvil Plate Size 55mm x 15mm Material Stainless Steel, Teethed Semi-circular Hopper Material Stainless Steel with discharge control arrangement Discharge Chute Suitable size Drive2 HP Crompton motor (Three Phase) Product Receiver Material Stainless Steel of suitable size Starter2 HP Crompton make

PNEUMATIC TRAINING KIT MAKE: CREATIVE LAB MODEL NO CLTD-23

Description

Pneumatic Training Kit: The Pneumatic Training Kit would be pneumatic based standalone training kit which would cover pure pneumatic systems, Electro pneumatic systems, smart maintenance in pneumatics, Analysis and control technology in pneumatics. The kit would have items for PC supported acquisition, representation and documentation of analogue measured values in pneumatic components and systems. The kit would facilitate learning and demonstration of following topics:

FEATURES OF PNEUMATIC TRAINER:

Self-combined mobile unit.

All the components are easily accessible.

Real life components of reputed manufacturers provided.

Quick connections possible due to special fittings/pipes.

Tried and tested components and circuits.

PLC with MODBUS communication.

PLC with software with help file

Specially designed control panel enabling students to develop their own circuits

Modular design with facilities to operate simple mechanisms

Pneumatically operated models available as additional supply

Training of Trainers offered at regular intervals

Three years performance guarantee for any manufacturing defect

LIST OF EXPERIMENTS:

Operation of a Single Acting Cylinder

Speed Control Of Single Acting Cylinder

Operation of a Single Acting Cylinder with And Gate

Operation of Pneumatic Motor

Speed Control of Pneumatic Motor

Operation of D/A Cylinder with 5/3 Way Lever Operated DC Valve

Speed Control of Double Acting Cylinder with Flow Control (Meter In)

Speed Control of Double Acting Cylinder with Flow Control (Meter Out)

Speed Control of Double Acting Cylinder with Flow Control in Forward & Return Stroke

Sequencing of Pneumatic Motor & Double Acting Cylinder

Sequencing of Double Acting Cylinder with Single Acting Cylinder

Operation of Single Acting Cylinder with 5/2 Way Single Solenoid

Operation of Double Acting Cylinder with 5/2 Way Single Solenoid

Operation of Double Acting Cylinder with 5/2 Way Single Solenoid, AND Gate of Electrical Switch

Operation of a Single Acting Cylinder with OR Gate

Speed Control of Double Acting Cylinder with Flow Control in Forward & Return Stroke

Quick return of Double Acting Cylinder using Quick Exhaust Valve

Two Speed Control of Double Acting Cylinder

Two Speed Control of Pneumatic Motor

Automatic Cycle of Double Acting Cylinder

LIST OF COMPONENTS:

Trolley with frame & caster wheels

Quick Push Pull connector

Plastic Tubing (PU6)

3/2 way Direction Control valve

5/3 way Direction Control valve with Hand Lever

Two Way Valve (AND Gate)

Flow Control valve

Single acting cylinder

5/2 way Single Solenoid

FRL Unit (Filter Regulator & Lubricator)

Starter valve

ounting Plates

T Block

Isolator Block

Pneumatic Motor

Double acting cylinder

Shuttle valve (OR Gate)

Quick Exhaust valve

Isolator Block

Proximity sensor

Instruction manual will be provided along with the apparatus.
