Pneumatic Training Kit: The Pneumatic Training Kit would be pneumatic based standalone training kit which would cover pure pneumatic systems, Electro pneumatic systems, smart maintenance in pneumatics, Analysis and control technology in pneumatics. The kit would have items for PC supported acquisition, representation and documentation of analogue measured values in pneumatic components and systems. The kit would facilitate learning and demonstration of following topics:

Self-combined mobile unit.

All the components are easily accessible.

Real life components of reputed manufacturers provided.

Quick connections possible due to special fittings/pipes.

Tried and tested components and circuits.

PLC with MODBUS communication.

PLC with software with help file

Specially designed control panel enabling students to develop their own circuits

Modular design with facilities to operate simple mechanisms

Pneumatically operated models available as additional supply

Training of Trainers offered at regular intervals

Three years performance guarantee for any manufacturing defect

Operation of a Single Acting Cylinder

Speed Control Of Single Acting Cylinder

Operation of a Single Acting Cylinder with And Gate

Operation of Pneumatic Motor

Speed Control of Pneumatic Motor

Operation of D/A Cylinder with 5/3 Way Lever Operated DC Valve

Speed Control of Double Acting Cylinder with Flow Control (Meter In)

Speed Control of Double Acting Cylinder with Flow Control (Meter Out)

Speed Control of Double Acting Cylinder with Flow Control in Forward & Return Stroke

Sequencing of Pneumatic Motor & Double Acting Cylinder

Sequencing of Double Acting Cylinder with Single Acting Cylinder

Operation of Single Acting Cylinder with 5/2 Way Single Solenoid

Operation of Double Acting Cylinder with 5/2 Way Single Solenoid

Operation of Double Acting Cylinder with 5/2 Way Single Solenoid, AND Gate of Electrical Switch

Operation of a Single Acting Cylinder with OR Gate

Speed Control of Double Acting Cylinder with Flow Control in Forward & Return Stroke

Quick return of Double Acting Cylinder using Quick Exhaust Valve

Two Speed Control of Double Acting Cylinder

Two Speed Control of Pneumatic Motor

Automatic Cycle of Double Acting Cylinder

Trolley with frame & caster wheels

Quick Push Pull connector

Plastic Tubing (PU6)

3/2 way Direction Control valve

5/3 way Direction Control valve with Hand Lever

Two Way Valve (AND Gate)

Flow Control valve

Single acting cylinder

5/2 way Single Solenoid

FRL Unit (Filter Regulator & Lubricator)

Starter valve

ounting Plates

T Block

Isolator Block

Pneumatic Motor

Double acting cylinder

Shuttle valve (OR Gate)

Quick Exhaust valve

Isolator Block

Proximity sensor

Instruction manual will be provided along with the apparatus.



Familiarization with the most important roller bearing types used in mechanical engineering and their specific applications.

Familiarisation with relevant standardized désignations and terms

Discussion of applications

13 Roller Bearings, arranged clearly : 5 roller bearings and 8 ball bearings

2 Axial bearings/11 Radial bearings

All parts arranged clearly in the storage system

Bearing Dimension

Inner diameter: Ø 20mm

outer diameter: Ø 35, 40, 42, 47, 52mm

bearing width: H=8, 10, 12, 14, 15, 18, 47mm

Instruction manual will be provided along with the apparatus.

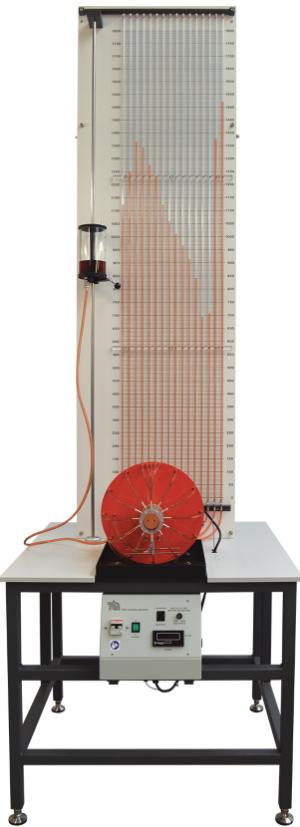

The journal bearing comprises an electrically driven shaft journal that rotates in a freely movable bearing housing. Oil is used as the lubricant. The displacement of the shaft journal depends on the speed and direction of rotation as well as the characteristic behavior during start-up, and can be observed through the transparent bearing housing. Speed and direction can be adjusted. The load on the journal bearing can be adjusted by varying the weights. The temperature in the bearing gap is measured in order to determine the viscosity of the lubricant.

pressure: 1770 mm oil column, 16connections

temperature: -10…50°C

speed: 0…3000min

visualization and investigation of pressure distribution in journal bearings

Bearing housing is completely transparent

Continuously adjustable speed, electronically controlled

Bearing subjected to load by means of weights

Temperature measurement in the bearing housing

12 measuring points on the periphery, 4 measuring points in the longitudinal direction

Pressure distribution indicated with 16 tube manometers

Digital display of speed on the display and control unit

Nominal bearing diameter: 51mm

Bearing gap width: 4mm

Bearing width: 75mm

Bearing load: 6.7…16.7N Motor

Power: 0.37kW

Max. speed: 3000min-1 Oil ISO viscosity grade: VG 32 Tank for oil: 2.5L Weights

1x 1N (hanger)

2x 2N

1x 5N

Instruction manual will be provided along with the apparatus.



PH meter with digital display

PH range 0 – 14

Millivolt Range : 1 to ± 1999mV

Resolution : 0.01 pH & 1 mV in mV mode

Repeatability: ± 0.01 pH, ± 1

Digit for pH : ± 1 mV in mV

Mode, ± 1 digit for mV

Slope correction: 85% to 115%

Table model with Probe and Automatic Temp. Compensation
