Unconfined Compression Tester

TECHNICAL DETAIL

. Digital Load Frame with LCD 50 kN Capacity with 4 Speed variations.

• Horizontal Clearance - 265 mm

• Vertical clearance - 700 mm

• Maximum Platen dia - 130 mm

• Maximum Platen Travel - 100mm

• Ram Dia - 50mm

• Suitable for operation on 220 V, 50 Hz, single phase, AC supply.

• Ring capacity - 2 kN

• Dial Gauge - 25 mm, 0.01 mm least count.

• Mould - 38 mm dia × 76 mm long

• Rubber Sheath - 38 mm dia specimen

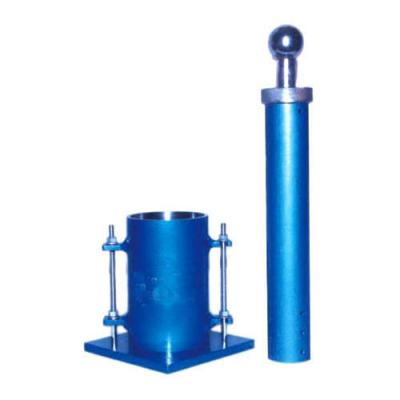

Proctor Test Apparatus for light compaction

DESCRIPTION

As per the IS:2720 (Part 7),

Compaction mould,

Dia - 100 mm, Height - 127.3 mm, Volume - 1,000 ml.

Rammer:- 2.6 kg

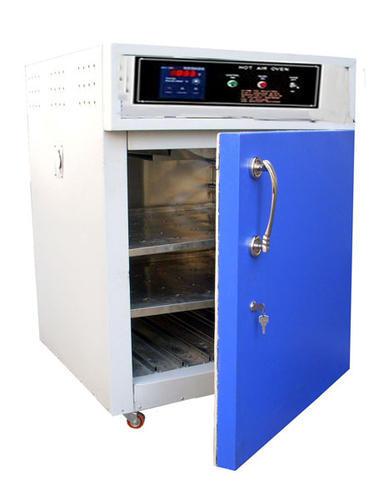

Laboratory hot air oven

DESCRIPTION
Digital laboratory over (18'x18'x18'), Hot oven 450mm digital

Electronic Balance

DESCRIPTION
upto 500g, and 5kg

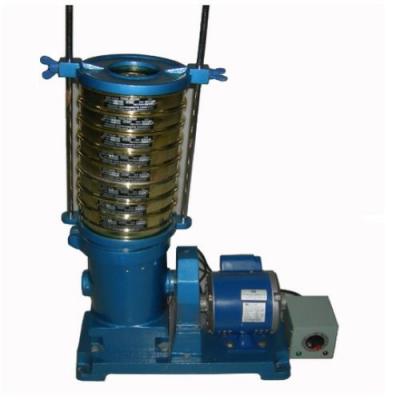

Sieve Shaker

TECHNICAL DETAIL

Sieve Shaker, Motorized, with Built-in Digital Timer,
• A digital timer adjustable from 0-99 minutes is incorporated as an integral part of the equipment.

• The Sieve Shaker can carry up to 8 sieves of 20cm diameter, also supplied with 30cm adaptor. It is driven by a ¼ HP geared motor.

, • The Sieve Table is inclined from the vertical axis and the direction of inclination changes progressively in the clockwise direction. In addition to the gyratory motion of the table, there is a tapping motion as well.

Suitable for operation on 220 V, 50 Hz, Single Phase, AC supply.
