DESCRIPTION

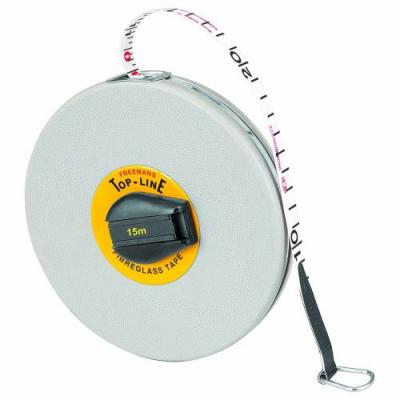

TAPE MEASURING METALLIC

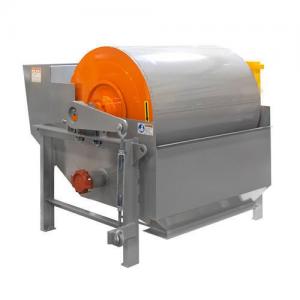

MAGNETIC SEPARATOR MAKE : CREATIVE LAB MODEL NO:CLMO-16

DESCRIPTION:

Materials, that have different magnetic attractability, may be separated by passing them through a magnetic field. Most often, magnetic separation techniques are used to remove iron, steel or magnetic iron oxide from materials low in magnetic attractability. These devices operate in either a continuous or a cyclic manner. Continuous devices usually have a belt which moves over the lifting magnetic poles to carry the magnetize partials into a region of low or zero magnetic field, where they are released. The present set-up is of In-line lifting magnet type. The set-up consists of two belts moving separately in opposite direction at slow speed. Feed through a vibrating hopper is conveyed over first belt and allowed to pass near the second belt, which is under magnetic field. The magnetic field is generated by permanent magnet kept in a box. Magnetically inert material drops off the belt in a normal manner. Magnetic material is held on the belt, however, and finally drops off the belt as it leaves the magnetic field. Both the belts are fitted on the pullies and drived by an electric motor coupled with a reduction gearbox.

EXPERIMENTATION:

To study the Principles and operation of a Magnetic Separator.

To determine the efficiency of Magnetic Separator.

UTILITY REQUIRED

Raw Material for Feed.

Electric Supply: Single phase, 220 V AC, 1 kW.

Floor Area 1.5 m x 1 m.

Weighing Balance.

TECHNICAL DETAIL

Belts Width 150mm, Length 500mm

Feed Hopper Material Stainless Steel, Suitable capacity (Continuously Vibrating)

Drive FHP motor with Reduction Gear Box.

Magnets Permanent Magnets kept in a Stainless Steel chamber.

Collecting Bin 2 Nos. One each for Magnetic and Non-Magnetic material.

Control panel Comprises of Standard make On/Off switch, Mains Indicator etc.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

The set-up is fitted with required guards and product collection tray.

The whole set-up is well designed and arranged in a good quality painted structure.

MAGNETIC SEPARATOR MAKE : CREATIVE LAB MODEL NO:-16

DESCRIPTION:

EXPERIMENTATION:

To study the Principles and operation of a Magnetic Separator.

To determine the efficiency of Magnetic Separator.

UTILITY REQUIRED

Raw Material for Feed.

Electric Supply: Single phase, 220 V AC, 1 kW.

Floor Area 1.5 m x 1 m.

Weighing Balance.

TECHNICAL DETAIL

Belts Width 150mm, Length 500mm

Feed Hopper Material Stainless Steel, Suitable capacity (Continuously Vibrating)

Drive FHP motor with Reduction Gear Box.

Magnets Permanent Magnets kept in a Stainless-Steel chamber.

Collecting Bin 2 Nos. One each for Magnetic and Non-Magnetic material.

Control panel Comprises of : Standard make On/Off switch, Mains Indicator etc.

Instruction Manual An ENGLISH instruction manual will be provided along with the Apparatus

THICKNESS GAUGE

DESCRIPTION
Conforms to IS: 2386 (Part I).
Metal plate made of steel having slots

Used for determining the flakiness index of aggregates.It consists of a frame with a sliding panel.

SINGLE CYLINDER TWO STROKE PETROL ENGINE TEST RIG

MAKE : CREATIVE LAB
MODEL NO:CLTD-01
DESCRIPTION:

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, and type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

EXPERIMENTATION:

To determine Brake Power

To determine fuel consumption

To determine specific fuel consumption

To determine Brake Thermal Efficiency

UTILITY REQUIRED

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp. Combined socket with earth connection.

Water Supply: Continuous @5LPM at 1 Bar pressure.

Floor Drain required

Petrol : 5 liters

2T Engine Oil : 2% of Fuel

Engine Oil : SAE 20W40; 500 ml (approx.)

Exhaust Emission

Floor Area: 2m x 1 m

Technical detail

Type of Engine Single cylinder, two stroke, air cooled, Manual start, self-lubricating, petrol engine (Bajaj make New Engine)

Type of Loading Rope Brake Dynamometer

Torque Measurement: By Brake Drum and spring balances

Eddy Current Dynamometer

Torque Measurement: By spring balances

Fuel Measuring System Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.

Air intake Measuring System Air tank fitted with orifice and manometer.

Exhaust gas calorimeter An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases.

The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil.

Digital Temperature indicator with Temperature sensors at appropriate position will be provided.

RPM measurement Techometer

Temperature Measurement Digital Temperature Indicator with multi-channel switch

Temperature Sensors K-Type Thermocouple.

Instruction Manual will be provided along with the Apparatus

The whole setup is well designed and supported by a good quality painted rigid M.S. Structure.
